002440864

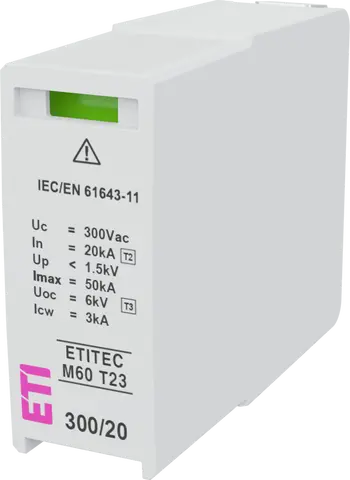

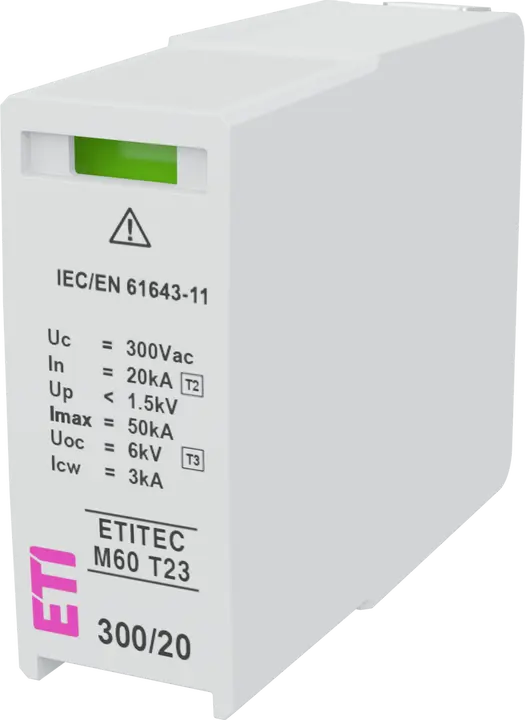

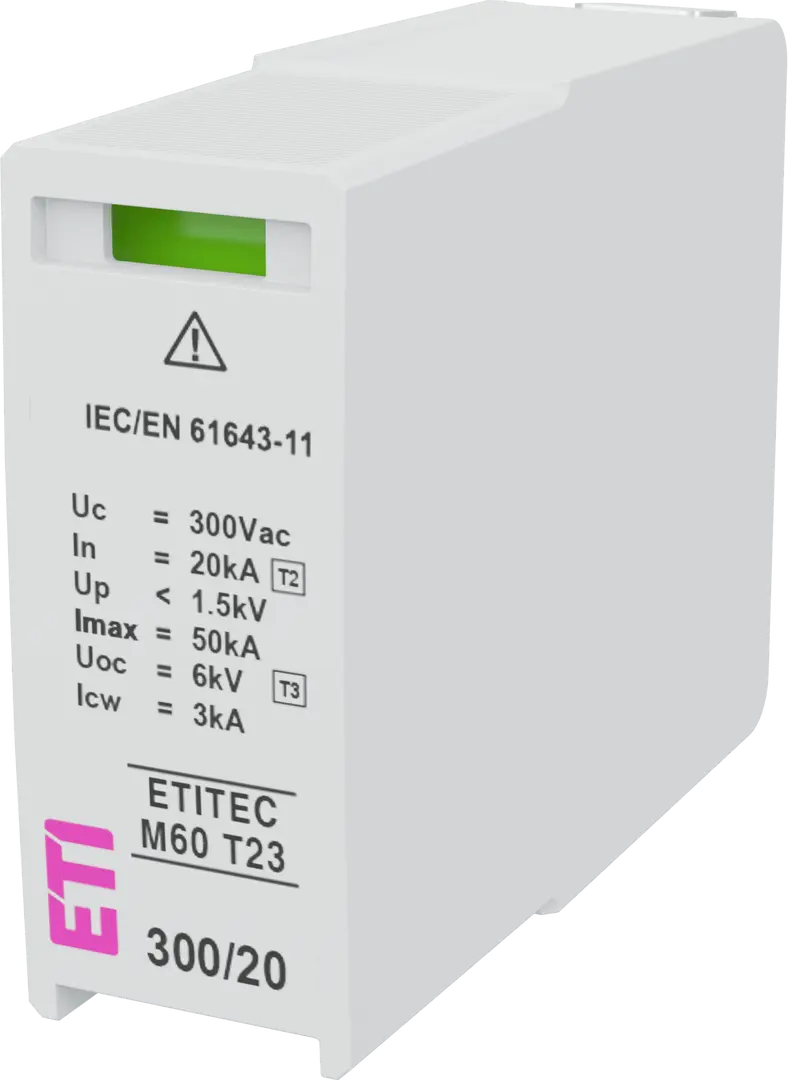

MOD.ETITEC M60F T23 300/20 Surge arrester
- ETI Code:
- 002440864
- Function:
- SPD Module
- To use with:
- ETITEC M60F T23
- Current type:
- AC
- Nominal discharge current (8/20 μs) In:
- 20 kA
4 Documents
18 Logistics
Product
- Net weight of the product
- 0.069 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400113986
- Basic packaging weight
- 0.076 kg
- Basic Packaging Dimensions Height
- 72 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 50 mm
- Basic packaging volume
- 0.086 dm³
Transport Packaging
- Transport packaging quantity
- 28 pcs
- EAN code for a transport packaging
- 3838400113993
- Transport packaging weight
- 2.181 kg
- Transport Packaging Dimensions Height
- 83 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 116 mm
- Transport packaging volume
- 2.937 dm³
- Pallet quantity
- 8,960 pcs
- Customs tariff
- 85363090
15 ETIM
- System configuration TN-C
- ✓
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Short-circuit breaking capacity (Isccr)
- 25 kA
- System configuration TN-S
- ✓
- Voltage protection level
- 1.5 kV
- System configuration TN
- ✓
- System configuration TT
- ✓
- Signalling at the device
- Optical
- Category type 2
- ✓
- Max. continuous voltage AC
- 300 V
- Nominal discharge surge current (8/20)
- 20 kA
ETIM Classification – Version 9.0
