002470297

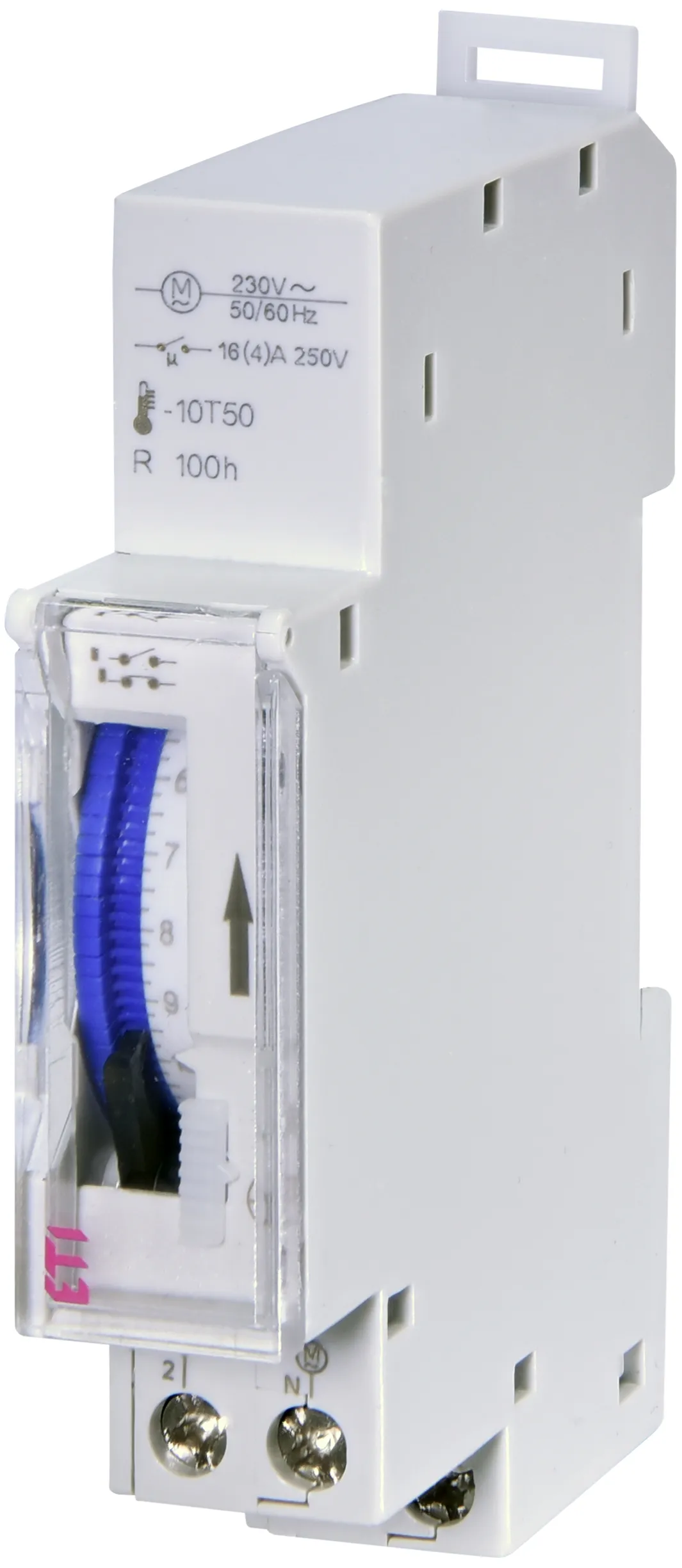

ATS-1DR 230 Time relay
- ETI Code:
- 002470297
- Time range:
- 15 min - 24 hours
- Function:
- Time relay
- Application:
- Sterowanie ogrzewaniem, wentylacją, chłodzeniem, oświetleniem, pompami
- Type of control:
- Time
- Supply voltage:
- 230 V
- Voltage type:
- AC
- Max. contact current:
- 16 A
- Rated current:
- 16 A
- Rated frequency:
- 50/60 Hz
- Max. load capacity at AC1:
- 4,000 VA
- Clamping cross-section:
- 1-4 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP20
- No. of NO contacts:
- 1
- No. of CO contacts:
- 1
21 Logistics
Product
- Net weight of the product
- 0.073 kg
- Net width
- 17.7 mm
- Net height
- 94 mm
- Net depth
- 65.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895945154
- Basic packaging weight
- 0.08 kg
- Basic Packaging Dimensions Height
- 97 mm
- Basic Packaging Dimensions Width
- 61 mm
- Basic Packaging Dimensions Depth
- 78 mm
- Basic packaging volume
- 0.462 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838400118080
- Transport packaging weight
- 0.129 kg
- Transport Packaging Dimensions Height
- 284 mm
- Transport Packaging Dimensions Width
- 102 mm
- Transport Packaging Dimensions Depth
- 76 mm
- Transport packaging volume
- 2.202 dm³
- Pallet quantity
- 4,540 pcs
- Customs tariff
- 85364900
