002470003

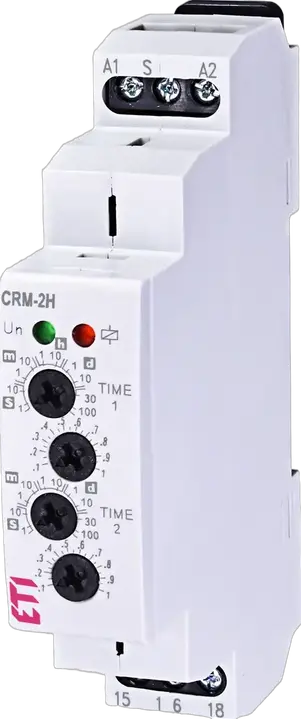

CRM-2H UNI Time relay
- ETI Code:
- 002470003
- Category:
- Asymmetric Time relay CRM-2H
- Catalogue Group:
- Twillight and staircase switches
- Catalogue Subgroup:
- Time relay
- Type of Installation:
- TH 35
- Time range:
- 0.1 s-100 days
- Type description:
- Asymmetric Time relay CRM-2H
- Voltage type:
- AC/DC
- Number of contacts:
- 1
- No. of CO contacts:
- 1
- Function:
- Time relay
- Maximum load capacity at AC1:
- 4,000 VA
- Number of Functions:
- 2
- Supply Voltage:
- 12-240 V
- Rated current:
- 16 A
7 Documents
21 Logistics
Product
- Net weight of the product
- 0.083 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.09 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 8594030338322
- Basic packaging weight
- 0.083 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895231219
- Transport packaging weight
- 0.833 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 4,600 pcs
- Customs tariff
- 85364900
24 ETIM
- 1st interval unit
- Minutes/hours
- 2nd interval unit
- Minutes/hours
- Mounting method
- DIN rail
- Voltage type (supply voltage)
- AC/DC
- Type of excitation
- Digital with single function
- Built-in height
- 65 mm
- Number of changeover switches
- 1
- Nominal switching current at 250 V AC
- 16 A
- Type of control voltage 2
- AC
- Type of control voltage 1
- AC/DC
- Function
- On/off-switch wiping relay
- Width in number of modular spacings
- 1
- Control voltage 2(Min)
- 240 V
- Frequency control voltage 2(Min)
- 50 Hz
- 2nd interval(Min)
- 0.02
- Control voltage 1(Min)
- 12 V
- 1st interval(Min)
- 0.02
- Frequency control voltage 1(Min)
- 50 Hz
- 2nd interval(Max)
- 2,400
- Control voltage 2(Max)
- 240 V
- Control voltage 1(Max)
- 12 V
- Frequency control voltage 1(Max)
- 50 Hz
- 1st interval(Max)
- 2,400
- Frequency control voltage 2(Max)
- 60 Hz
ETIM Classification – Version 9.0
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
21 Tags
002470003Time relayCRM-2H UNIEVE/ETIRELControl equipmentRelaysRelaysTime relayTime relayInternationalAutomation, signaling and control devicesTimers and digital time relays ETIRELVoltage type: AC/DCNumber of contacts: 1No. of CO contacts: 1Function: Time relayMaximum load capacity at AC1: 4000 VANumber of Functions: 2Supply Voltage: 12 V-240 VRated current: 16 A/16 ATime relay TOWAR Voltage type: AC/DC Number of contacts: 1 No. of CO contacts: 1 Function: Time relay Maximum load capacity at AC1: 4000 VA Supply Voltage: 12 V-240 V Rated current: 16 A/16 A
Similar Products 41 All Products
002470001
CRM-91H UNI
- Class name
- Time relay
- Type of contacts
- No. of NC contacts
- Voltage type
- AC/DC
- Number of contacts
- 1
002470002

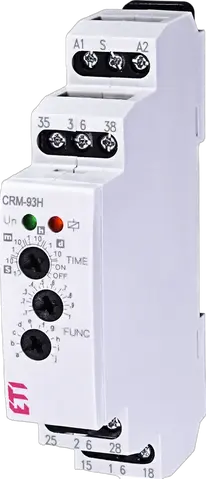

CRM-93H UNI
- Class name
- Time relay
- Type of contacts
- No. of NC contacts
- Voltage type
- AC/DC
- Number of contacts
- 3
002470004

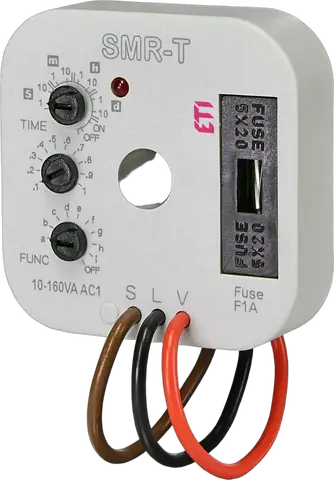

SMR-T
- Class name
- Time relay
- Type of contacts
- No. of NC contacts
- Voltage type
- AC
- Number of contacts
- 1
002470010

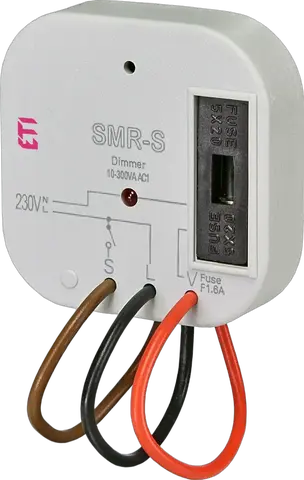

SMR-S
- Class name
- Dimming relay
- Type of contacts
- Triac
- No. of NC contacts
- Voltage type
- AC
- Number of contacts
- 1
002470013

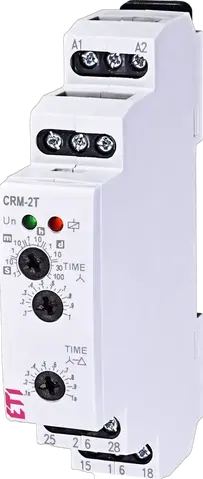

CRM-2T UNI
- Class name
- Time relay
- Type of contacts
- No. of NC contacts
- Voltage type
- AC/DC
- Number of contacts
- 2
002470021

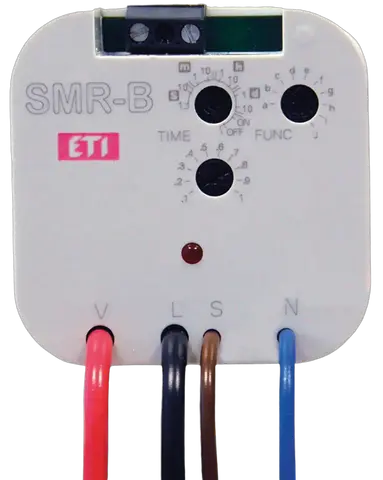

SMR-B
- Class name
- Time relay
- Type of contacts
- No. of NC contacts
- Voltage type
- AC
- Number of contacts
- 1
002470027
TRE-1A
- Class name
- Time relay
- Type of contacts
- No. of NC contacts
- Voltage type
- AC
- Number of contacts
- 1
002470028
TRE-1B
- Class name
- Time relay
- Type of contacts
- No. of NC contacts
- Voltage type
- AC
- Number of contacts
- 1
002470030

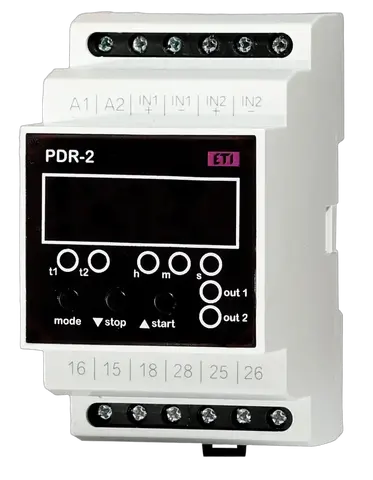

PDR-2/A UNI
- Class name
- Time relay - digital
- Type of contacts
- No. of NC contacts
- Voltage type
- Number of contacts
002470035
PDR-2/B UNI
- Class name
- Time relay - digital
- Type of contacts
- No. of NC contacts
- Voltage type
- Number of contacts
002470050

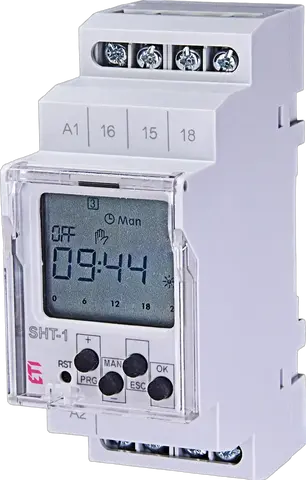

SHT-1 230V
