002470053

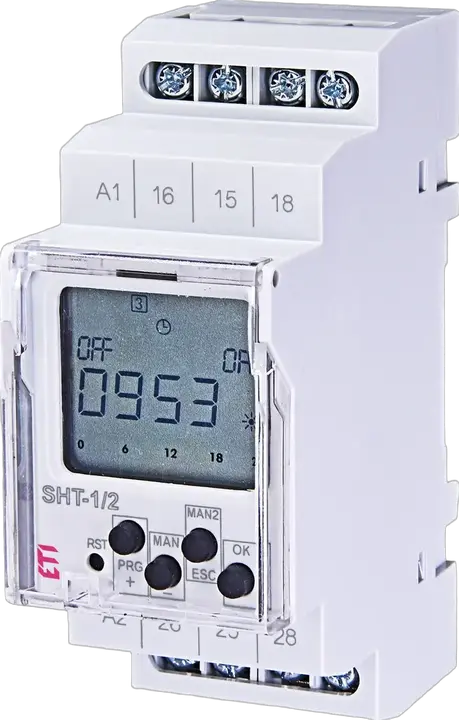

SHT-1/2 230V Time relay - digital
- ETI Code:
- 002470053
- Category:
- Digital time switch SHT-1, SHT-1/2, SHT-3 and SHT-3/2
- Catalogue Group:
- Time relay (Digital)
- Catalogue Subgroup:
- Digital time switch
- Time range:
- daily, weekly
- Type description:
- Digital time switch SHT-1, SHT-1/2, SHT-3 and SHT-3/2
- Type of contacts:
- 1xCO
- Voltage type:
- AC
- Number of contacts:
- 2
- No. of CO contacts:
- 2
- Function:
- Time relay
- Maximum load capacity at AC1:
- 4,000 VA
- Supply Voltage:
- 230 V
- Rated current:
- 16 A
14 Logistics
Product
- Net weight of the product
- 0.16 kg
- Net width
- 112.6 mm
- Net height
- 119.9 mm
- Net depth
- 63.17 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 8595188121156
- Transport packaging weight
- 0.16 kg
- Transport Packaging Dimensions Height
- 78 mm
- Transport Packaging Dimensions Width
- 97 mm
- Transport Packaging Dimensions Depth
- 61 mm
- Transport packaging volume
- 0.462 dm³
- Pallet quantity
- 2,166 pcs
- Customs tariff
- 85364900
32 ETIM
- Number of contacts
- 2
- Impulse program
- Yes
- Quartz controlled
- Yes
- Width
- 36 mm
- Suitable for manual operation
- Yes
- Weekly program
- Yes
- Number of channels
- 2
- Degree of protection (IP)
- IP20
- Contact type
- Change-over contact (NO/NC)
- Mounting method
- DIN rail
- Automatic switching summer-/winter time
- Yes
- Accuracy per day
- 1 s
- Holiday program
- Yes
- Voltage type (supply voltage)
- AC
- Random program
- Yes
- Autonomy in hours
- 26,280
- Shortest switching time channel 2
- 1 min
- Autonomy in years
- 3
- 24 h program
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Depth
- 64 mm
- Text guidance in display
- Yes
- Cycle program
- Yes
- Shortest switching time channel 1
- 1 min
- Potential free switch contact
- Yes
- Height
- 90 mm
- Width in number of modular spacings
- 2
- 60 min program
- Yes
- Frequency supply voltage(Min)
- 50 Hz
- Supply voltage(Min)
- 230 V
- Frequency supply voltage(Max)
- 60 Hz
- Supply voltage(Max)
- 230 V
ETIM Classification – Version 9.0
