002471451

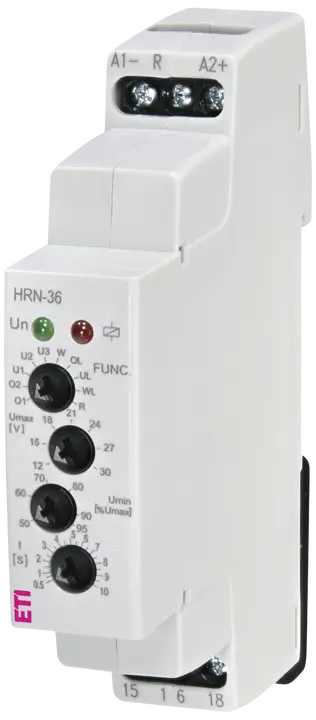

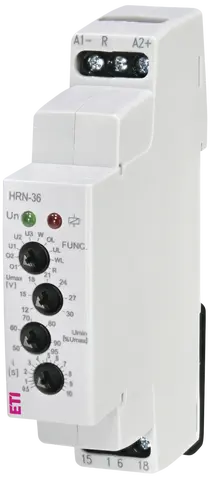

HRN-36 Control relay
- ETI Code:
- 002471451
- No. of CO contacts:
- 1
21 Logistics
Product
- Net weight of the product
- 0.09 kg
- Net width
- 17.6 mm
- Net height
- 93 mm
- Net depth
- 64.4 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400113429
- Basic packaging weight
- 0.095 kg
- Basic Packaging Dimensions Height
- 97 mm
- Basic Packaging Dimensions Width
- 25 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838400113412
- Transport packaging weight
- 0.151 kg
- Transport Packaging Dimensions Height
- 284 mm
- Transport Packaging Dimensions Width
- 102 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 5,000 pcs
- Customs tariff
- 85364900
18 ETIM
- Single-phase under voltage possible
- ✓
- Width
- 18 mm
- Single-phase hysteresis possible
- ✓
- Max. permitted delay-on energization time
- 10 s
- Min. adjustable delay-on energization time
- 0.5 s
- Max. permitted off-delay time
- 10 s
- Min. adjustable off-delay time
- 0.5 s
- Contains function DC-voltage hysteresis
- ✓
- Type of voltage measuring range
- DC
- Single-phase over voltage possible
- ✓
- Contains function DC-under voltage
- ✓
- Contains function DC-over voltage
- ✓
- Depth
- 65 mm
- Type of electric connection
- Screw connection
- Number of contacts as change-over contact
- 1
- Height
- 90 mm
- Voltage measuring range 1(Min)
- 6 V
- Voltage measuring range 1(Max)
- 30 V
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
16 Tags
002471451Control relayHRN-36EVE/ETIRELControl equipmentRelaysRelaysVoltage monitoring relayVoltage monitoring relayInternationalAutomation, signaling and control devicesMonitoring and control relays ETIRELNo. of NC contacts: 0No. of CO contacts: 1No. of NO contacts: 0Control relay TOWAR No. of NO contacts: 0 No. of CO contacts: 1 No. of NC contacts: 0
