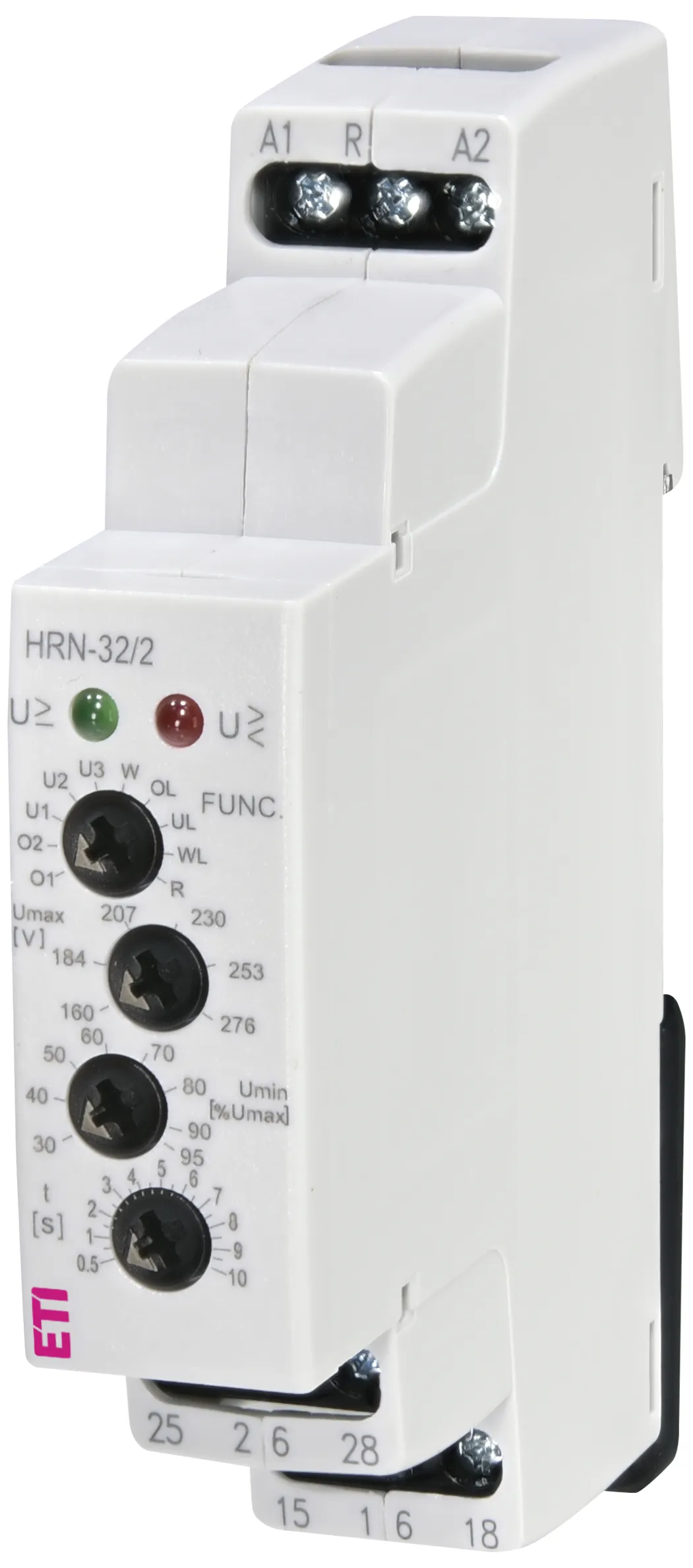

Control relay HRN-32/2 002471452
Specifications
- ETI Code:
- 002471452
- Description:
- HRN-32/2
- Class name:
- Control relay
- Number of CO contacts:
- 2
- DC rated control supply voltage Uc (V):
- 48276V
- Maximum load capacity at AC1 (VA):
- 4000VA
- Function:
- Monitoring and Control relays
- Supply voltage (V):
- 48V-276V
- Type of control:
- Umax,Umin
- Number of contacts:
- 1
- Voltage type:
- AC/DC
- Rated current (A):
- 16A
Documents
Logistic Data
Product
- Net weight of the product
- 0.106 kg
- Customs tariff
- 85364900
- logis_net_width
- 18 mm
- logis_net_height
- 93 mm
- logis_net_depth
- 64 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400113443
- Basic packaging weight
- 0.106 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838400113436
- Transport packaging weight
- 0.162 kg
- Pallet quantity
- 5000
ETIM Clasification
- Classification
- EC001438
- Class name
- Voltage monitoring relay
- Type of electric connection
- Screw connection
- Single-phase under voltage possible
- Yes
- Single-phase over voltage possible
- Yes
- Voltage measuring range 1
- 48…276V
- Type of voltage measuring range
- AC/DC
- Rated control supply voltage AC 50 Hz
- 48…276V
- Voltage type for actuating
- AC
- Min. adjustable delay-on energization time
- 0,5s
- Max. permitted delay-on energization time
- 10s
- Min. adjustable off-delay time
- 0,5s
- Max. permitted off-delay time
- 10s
- Number of contacts as change-over contact
- 1
- Width
- 18mm
- Height
- 90mm
- Depth
- 65mm

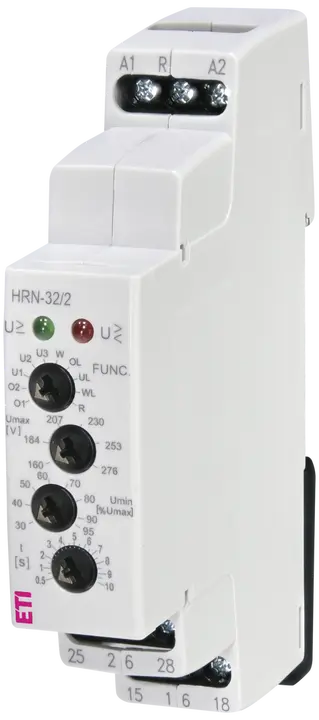

HRN-32/2
