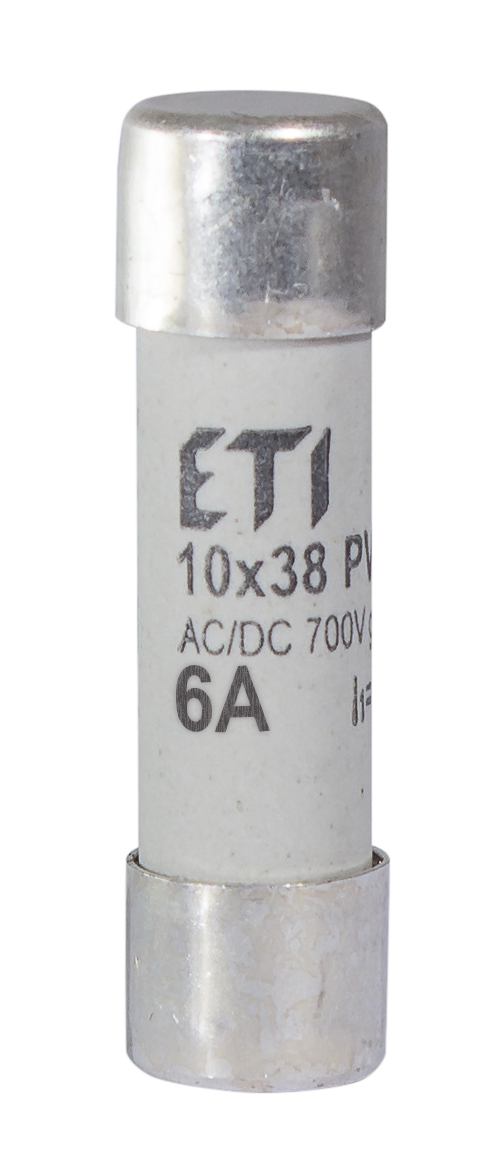

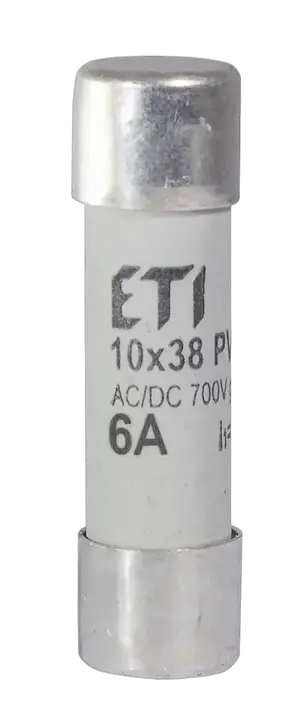

Fuse link CH10x38 gR 6A/700V AC/DC 002625019

Specifications

ETI Code:
002625019
Description:
CH10x38 gR 6A/700V AC/DC
Class name:
Fuse link
Type:
CH
Size:
CH10
Rated current (A):
6
Rated AC voltage (V):
700
Rated DC voltage (V):
700
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
10x38
Power dissipation (0,7xIn) (W):
0,73
Power dissipation (W):
1,7
Prearcing joule integral (A2s):
14
Operating joule integral (A2s):
63
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895605089
Net weight of the product
0.08 kg
Customs tariff
85361010

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895605089
Basic packaging weight
0.08 kg
Basic packaging volume
0.042

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895605096
Transport packaging weight
4.1 kg
Transport packaging volume
3.386
Pallet quantity
85000
Pallet volume
575.62
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Breaking capacity
50kA
Construction size
CH10
Max. rated operation voltage Ue AC
700
Nominal current
6A
Rated current
6
Rated voltage
Other
Rated voltage DC
700
Size
10x38 mm
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002625019Fuse link, CH10x38 gR 6A/700V AC/DCUltra QuickSystem CgR CharacteristicgR CharacteristicCH 10Standard contactsFuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKCH10X38 GR 6A/70Rated current 6AType CHSize CH10Product group Special purpose fusesProduct subgroup PVCharacteristics gRRated AC voltage 700VRated DC voltage 700VDimensions 10x38Breaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 1,7WCatalogue Group Special purpose fusesCatalogue subgroup PV FuseStandards IEC 60269-4Power dissipation (0,7xIn) 0,73WOperating joule integral 63A2sL/R 2msPrearcing joule integral 14A2sApplication For protection of semiconductor devicesDesigned for Protection of PV installationsFuse link CH10x38 CH CH10 6A 700V 700V gR
