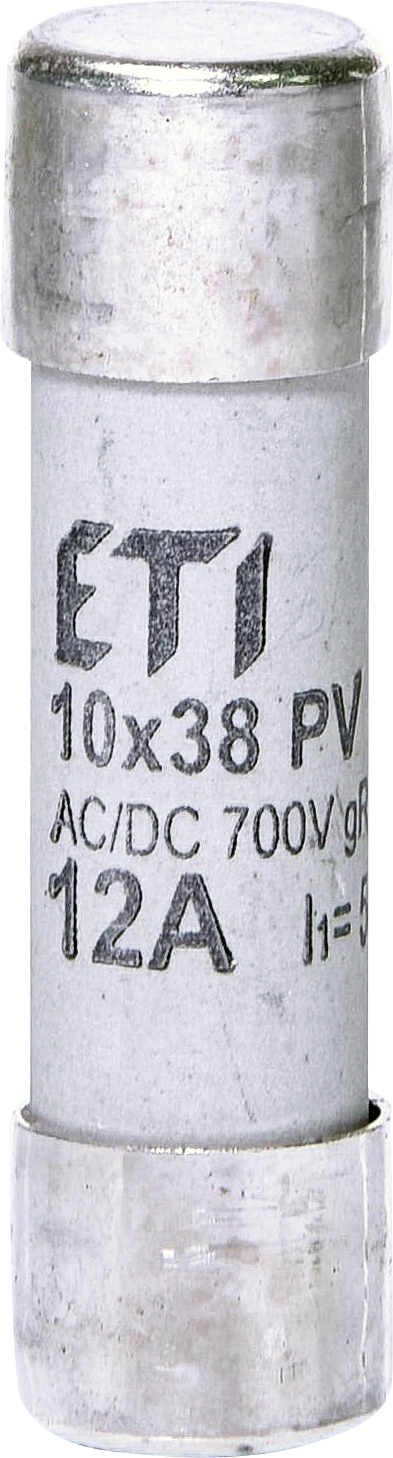

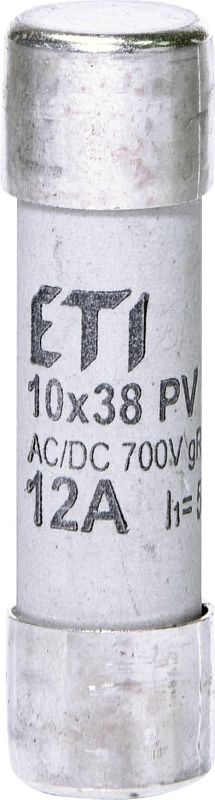

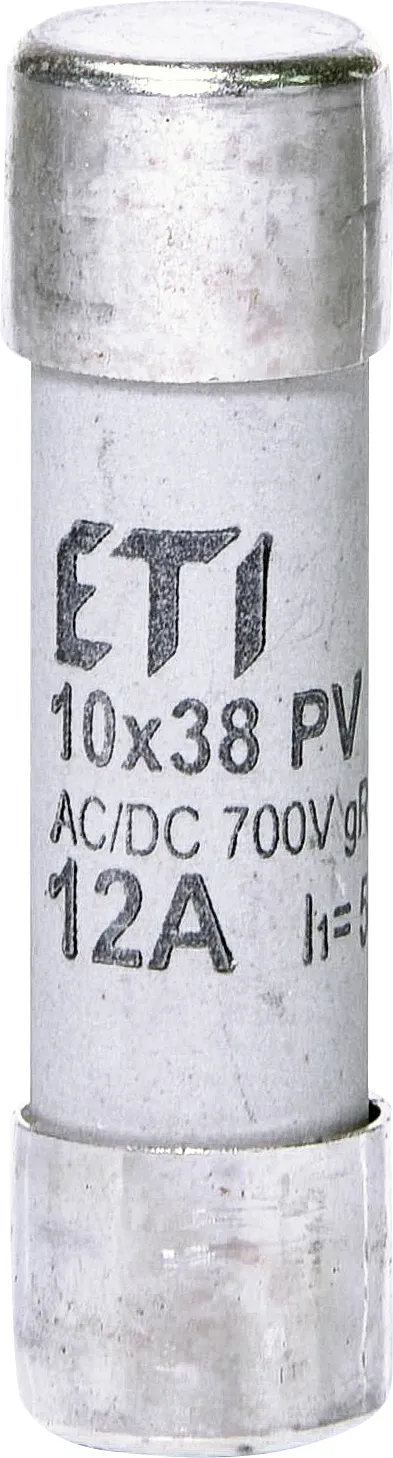

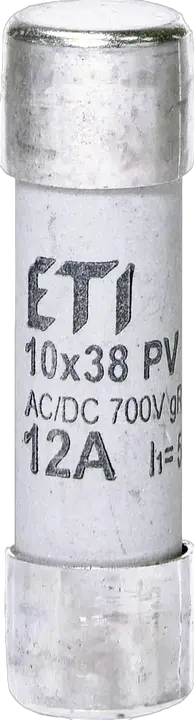

Fuse link CH10x38 gR 12A/700V AC/DC 002625022

Specifications

ETI Code:
002625022
Description:
CH10x38 gR 12A/700V AC/DC
Class name:
Fuse link
Type:
CH
Size:
CH10
Rated current (A):
12
Rated AC voltage (V):
700
Rated DC voltage (V):
700
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
10x38
Power dissipation (0,7xIn) (W):
0,82
Power dissipation (W):
1,85
Prearcing joule integral (A2s):
48
Operating joule integral (A2s):
122
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895605140
Net weight of the product
0.08 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895605140
Basic packaging weight
0.08 kg
Basic packaging volume
0.042

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895605157
Transport packaging weight
4.1 kg
Transport packaging volume
3.386
Pallet quantity
85000
Pallet volume
575.62
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Breaking capacity
50kA
Construction size
CH10
Max. rated operation voltage Ue AC
700
Nominal current
12A
Rated current
12
Rated voltage
Other
Rated voltage DC
700
Size
10x38 mm
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002625022Fuse link, CH10x38 gR 12A/700V AC/DCUltra QuickSystem CgR CharacteristicgR CharacteristicCH 10Standard contactsFuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKCH10X38 GR 12A/7Rated current 12AType CHSize CH10Product group Special purpose fusesProduct subgroup PVCharacteristics gRRated AC voltage 700VRated DC voltage 700VDimensions 10x38Breaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 1,85WCatalogue Group Special purpose fusesCatalogue subgroup PV FuseStandards IEC 60269-4Power dissipation (0,7xIn) 0,82WOperating joule integral 122A2sL/R 2msPrearcing joule integral 48A2sApplication For protection of semiconductor devicesDesigned for Protection of PV installationsFuse link CH10x38 CH CH10 12A 700V 700V gR
