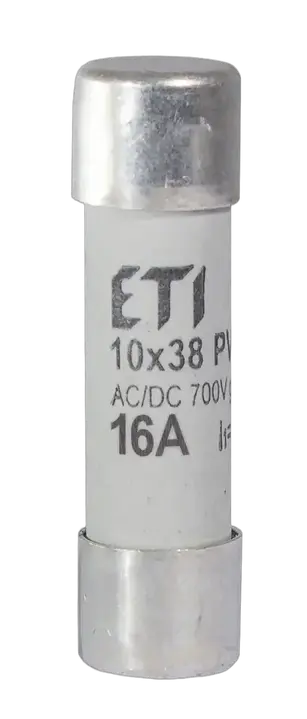

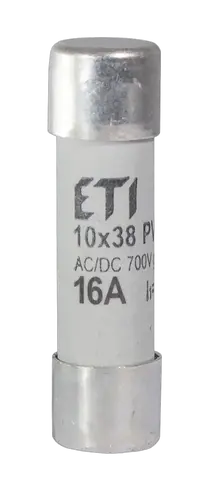

Fuse link CH10x38 gR 16A/700V AC/DC 002625023

Specifications

ETI Code:
002625023
Description:
CH10x38 gR 16A/700V AC/DC
Class name:
Fuse link
efuse:
1
Designed for:
Protection of PV installations
Product subgroup:
PV
Product group:
Special purpose fuses
L/R (ms):
2
Type:
CH
Size:
10x38
Rated current (A):
16
Rated AC voltage (V):
700
Rated DC voltage (V):
700
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Power dissipation (0,7x In) (W):
1,06
Power dissipation (W):
2,61
Prearcing joule integral (A2s):
97
Operating joule integral (A2s):
182
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838400052261
Net weight of the product
8.3  g
Customs tariff
85361050
logis_net_width
10  mm
logis_net_height
38  mm
logis_net_depth
10  mm

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895605164
Basic packaging weight
0.08  kg

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895605171
Transport packaging weight
4.1  kg
Pallet quantity
85000
Classification
EC002704
Class name
Cylindrical fuse
Max. rated operation voltage Ue AC
700
Rated voltage DC
700
Construction size
CH10
Application
For protection of semiconductor devices
Rated current
16
Size
10x38 mm
Rated voltage
Other
Utilization category
Other
Nominal current
16A
Breaking capacity
50kA
ETIM Classification – Version 7.0
