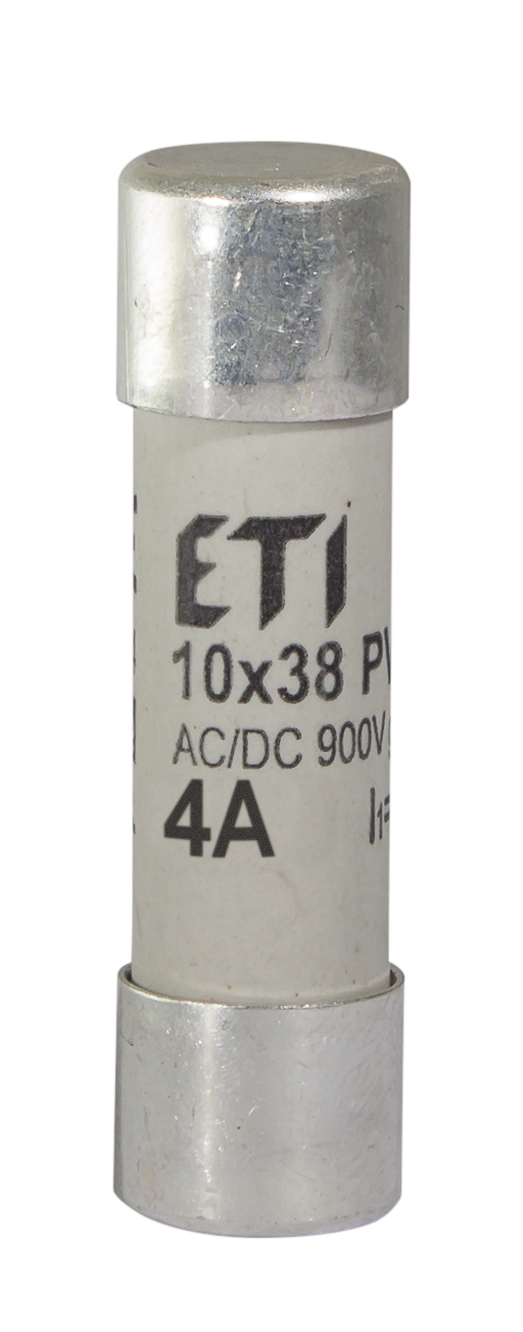

Fuse link CH10x38 gR 4A/900V AC/DC 002625028

Specifications

ETI Code:
002625028
Description:
CH10x38 gR 4A/900V AC/DC
Class name:
Fuse link
Type:
CH
Size:
CH10
Rated current (A):
4
Rated AC voltage (V):
900
Rated DC voltage (V):
900
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
10x38
Power dissipation (0,7xIn) (W):
0,55
Power dissipation (W):
1,3
Prearcing joule integral (A2s):
7,6
Operating joule integral (A2s):
37
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895605249
Net weight of the product
0.08 kg
Customs tariff
85361010

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895605249
Basic packaging weight
0.08 kg
Basic packaging volume
0.042

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895605256
Transport packaging weight
4.1 kg
Transport packaging volume
3.386
Pallet quantity
85000
Pallet volume
575.62
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Breaking capacity
50kA
Construction size
CH10
Max. rated operation voltage Ue AC
900
Nominal current
4A
Rated current
4
Rated voltage
Other
Rated voltage DC
900
Size
10x38 mm
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams

Software & drivers

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002625028Fuse link, CH10x38 gR 4A/900V AC/DCUltra QuickSystem CgR CharacteristicgR CharacteristicCH 10Standard contactsFuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKCH10X38 GR 4A/90Rated current 4AType CHSize CH10Product group Special purpose fusesProduct subgroup PVCharacteristics gRRated AC voltage 900VRated DC voltage 900VDimensions 10x38Breaking capacity AC 50kABreaking capacity DC 8kAPower dissipation 1,3WCatalogue Group Special purpose fusesCatalogue subgroup PV FuseStandards IEC 60269-4Power dissipation (0,7xIn) 0,55WOperating joule integral 37A2sL/R 2msPrearcing joule integral 7,6A2sApplication For protection of semiconductor devicesDesigned for Protection of PV installationsFuse link CH10x38 CH CH10 4A 900V 900V gR
