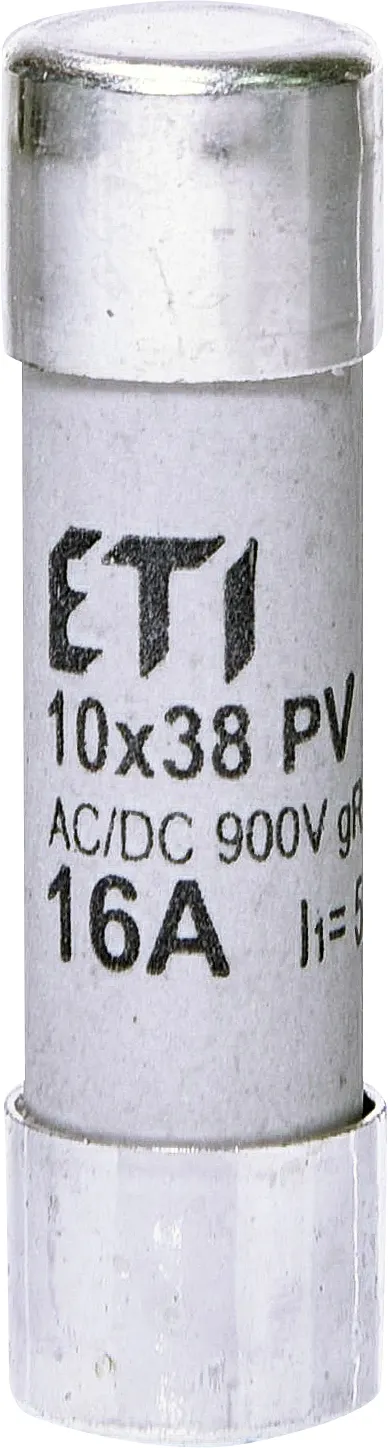

Fuse link CH10x38 gR 16A/900V AC/DC 002625033
Specifications
- ETI Code:
- 002625033
- Description:
- CH10x38 gR 16A/900V AC/DC
- Class name:
- Fuse link
- efuse:
- 1
- Designed for:
- Protection of PV installations
- Product subgroup:
- PV
- Product group:
- Special purpose fuses
- L/R (ms):
- 2
- Type:
- CH
- Size:
- 10x38
- Rated current (A):
- 16
- Rated AC voltage (V):
- 900
- Rated DC voltage (V):
- 900
- Characteristics:
- gR
- Breaking capacity AC (kA):
- 50
- Breaking capacity DC (kA):
- 8
- Application:
- For protection of semiconductor devices
- Power dissipation (0,7x In) (W):
- 1,06
- Power dissipation (W):
- 2,61
- Prearcing joule integral (A2s):
- 97
- Operating joule integral (A2s):
- 234
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400052353
- Net weight of the product
- 8.3 g
- Customs tariff
- 85361050
- logis_net_width
- 10 mm
- logis_net_height
- 38 mm
- logis_net_depth
- 10 mm
Basic packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895605355
- Basic packaging weight
- 0.085 kg
Transport packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895605362
- Transport packaging weight
- 4.25 kg
- Pallet quantity
- 85000
Intermediate packaging
- qty
- 1 pcs
- Weight
- 8.3 g
- Height (mm)
- 38
- Depth (mm)
- 10
- volume
- 0.004 dm3
ETIM Clasification
- Classification
- EC000035
- Class name
- Miniature fuse
- Rated current
- 16A
- Rated voltage
- 900V
Characteristic
