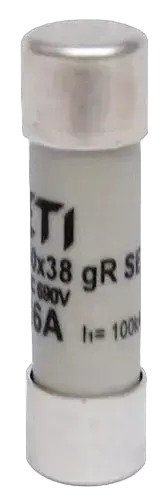

Fuse link CH10x38 gRSE 20A/690V 002625047
Specifications
- ETI Code:
- 002625047
- Description:
- CH10x38 gRSE 20A/690V
- Class name:
- Fuse link
- efuse:
- 1
- Type:
- CH
- Size:
- CH10
- Rated current (A):
- 20
- Characteristics:
- gR
- L/R (ms):
- 10
- Application:
- Protection of inverters, variable speed drives
- Dimensions:
- 10x38
- Power dissipation (0,7xIn) (W):
- 1,7
- Power dissipation (W):
- 2,9
- Operating joule integral (A2s):
- 340
- Prearcing joule integral (A2s):
- 80
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400060990
- Net weight of the product
- 8.3 g
- Customs tariff
- 85361050
- logis_net_width
- 10 mm
- logis_net_height
- 38 mm
- logis_net_depth
- 10 mm
Level 1 Packaging
- Basic packaging quantity
- 10
- EAN code for a basic packaging
- 3838895695028
- Basic packaging weight
- 0.08 kg
Level 2 Packaging
- Transport packaging quantity
- 500
- EAN code for a transport packaging
- 3838895695035
- Transport packaging weight
- 4.1 kg
- Pallet quantity
- 85000
