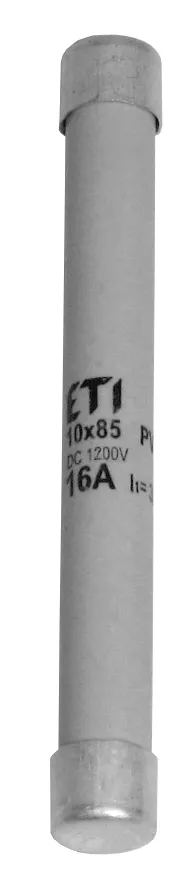

Fuse link CH10x85 gR 25A/1200V DC 002625228

Specifications

ETI Code:
002625228
Description:
CH10x85 gR 25A/1200V DC
Class name:
Fuse link
efuse:
1
Product group:
Special purpose fuses
Product subgroup:
PV
L/R (ms):
2
Designed for:
Protection of PV installations
Type:
CH
Size:
CH10
Rated current (A):
25
Rated DC voltage (V):
1200
Characteristics:
gR
Breaking capacity DC (kA):
30
Application:
For protection of semiconductor devices
Dimensions:
10x85
Power dissipation (0,7xIn) (W):
2,17
Power dissipation (W):
5
Prearcing joule integral (A2s):
273
Operating joule integral (A2s):
438
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838400052643
Net weight of the product
16.1  g
Customs tariff
85351000
logis_net_width
10  mm
logis_net_height
85  mm
logis_net_depth
10  mm

Level 1 Packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895611721
Basic packaging weight
0.162  kg

Level 2 Packaging

Transport packaging quantity
210
EAN code for a transport packaging
3838895611738
Transport packaging weight
3.7  kg
Pallet quantity
35700
Classification
EC002704
Class name
Cylindrical fuse
Rated current
25
Construction size
CH10
Rated voltage DC
1200
Application
For protection of semiconductor devices
Size
Other
Rated voltage
Other
Utilization category
Other
Nominal current
25A
ETIM Classification – Version 7.0
