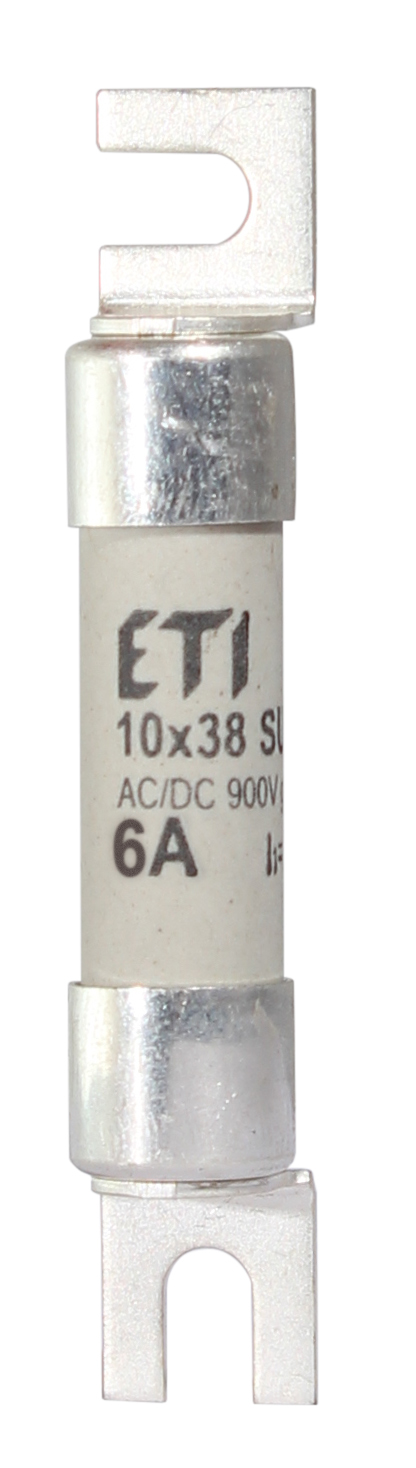

Fuse link CH10x38SU gR 6A/900V AC/DC 002625312

Specifications

ETI Code:
002625312
Description:
CH10x38SU gR 6A/900V AC/DC
Class name:
Fuse link
efuse:
1
Product group:
Special purpose fuses
Product subgroup:
PV
L/R (ms):
2
Designed for:
Protection of PV installations
Type:
CH SU
Size:
CH10
Rated current (A):
6
Rated AC voltage (V):
900
Rated DC voltage (V):
900
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
10x38
Power dissipation (0,7xIn) (W):
0,73
Power dissipation (W):
1,7
Prearcing joule integral (A2s):
14
Operating joule integral (A2s):
81
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838400052490
Net weight of the product
10.2  g
Customs tariff
85361010
logis_net_width
10  mm
logis_net_height
60  mm
logis_net_depth
11  mm

Level 1 Packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895612308
Basic packaging weight
0.104  kg

Level 2 Packaging

Transport packaging quantity
380
EAN code for a transport packaging
3838895612315
Transport packaging weight
4.12  kg
Pallet quantity
63840
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Rated current
6
Max. rated operation voltage Ue AC
900
Construction size
CH10
Rated voltage DC
900
Size
10x38 mm
Rated voltage
Other
Utilization category
Other
Nominal current
6A
Breaking capacity
50kA
ETIM Classification – Version 7.0
