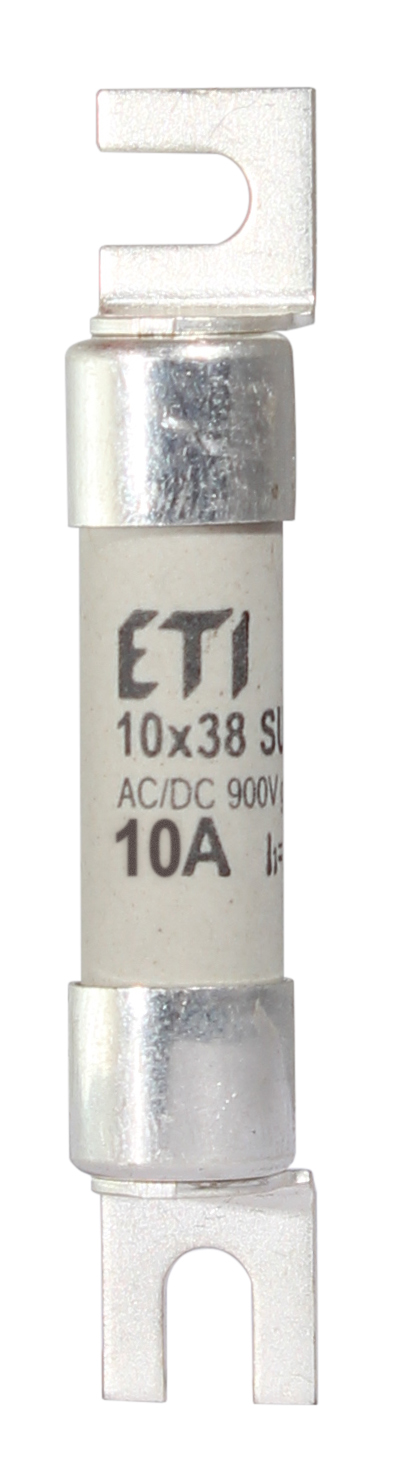

Fuse link CH10x38SU gR 10A/900V AC/DC 002625314

Specifications

ETI Code:
002625314
Description:
CH10x38SU gR 10A/900V AC/DC
Class name:
Fuse link
efuse:
1
Product group:
Special purpose fuses
Product subgroup:
PV
L/R (ms):
2
Designed for:
Protection of PV installations
Type:
CH SU
Size:
CH10
Rated current (A):
10
Rated AC voltage (V):
900
Rated DC voltage (V):
900
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
10x38
Power dissipation (0,7xIn) (W):
0,98
Power dissipation (W):
2,44
Prearcing joule integral (A2s):
20
Operating joule integral (A2s):
94
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838400052513
Net weight of the product
10.2  g
Customs tariff
85361010
logis_net_width
10  mm
logis_net_height
60  mm
logis_net_depth
11  mm

Level 1 Packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895612346
Basic packaging weight
0.104  kg

Level 2 Packaging

Transport packaging quantity
380
EAN code for a transport packaging
3838895612353
Transport packaging weight
4.12  kg
Pallet quantity
63840
Classification
EC002704
Class name
Cylindrical fuse
Max. rated operation voltage Ue AC
900
Construction size
CH10
Rated voltage DC
900
Application
For protection of semiconductor devices
Rated current
10
Size
10x38 mm
Rated voltage
Other
Utilization category
Other
Nominal current
10A
Breaking capacity
50kA
ETIM Classification – Version 7.0
