Fuse link CH22x58 aR 40A/690V 002645017

Specifications

ETI Code:
002645017
Description:
CH22x58 aR 40A/690V
Class name:
Fuse link
Type:
CH
Size:
CH22
Rated current (A):
40
Rated AC voltage (V):
690
Characteristics:
aR
Breaking capacity AC (kA):
200
Breaking capacity DC (kA):
50
Application:
For protection of semiconductor devices
Dimensions:
22x58
Power dissipation (W):
8,5
Operating joule integral (A2s):
750
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
Net weight of the product
0.061 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895356424
Basic packaging weight
0.44 kg
Basic packaging volume
0.3

Transport packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895356424
Transport packaging weight
0.44 kg
Transport packaging volume
0.3
Pallet quantity
15000
Pallet volume
450
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
200kA
Nominal current
40A
Size
22x58 mm
Utilization category
Other
ETIM Classification – Version 7.0

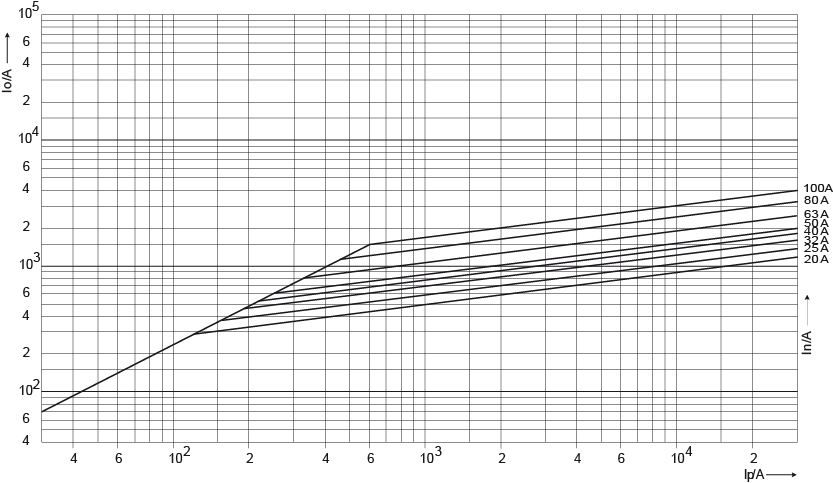

Images & Diagrams

002645017Fuse link, CH22x58 aR 40A/690VUltra QuickSystem CaR CharacteristicaR CharacteristicCH22CH22Fuse links for semi conductor protection ULTRA QUICKFuse links ULTRA QUICKCH22X58 AR 40A/6Rated current 40AType CHSize CH22Product group Semiconductor ProtectionCharacteristics aRRated AC voltage 690VDimensions 22x58Breaking capacity AC 200kABreaking capacity DC 50kAPower dissipation 8,5WCatalogue Group Semiconductor ProtectionStandards IEC 60269-4Operating joule integral 750A2sApplication For protection of semiconductor devicesFuse link CH22x58 CH CH22 40A 690V aR
