Fuse link CH22x58 aR 100A/500V 002645025

Specifications

ETI Code:
002645025
Description:
CH22x58 aR 100A/500V
Class name:
Fuse link
Type:
CH
Size:
CH22
Rated current (A):
100
Rated AC voltage (V):
500
Characteristics:
aR
Breaking capacity AC (kA):
200
Breaking capacity DC (kA):
50
Application:
For protection of semiconductor devices

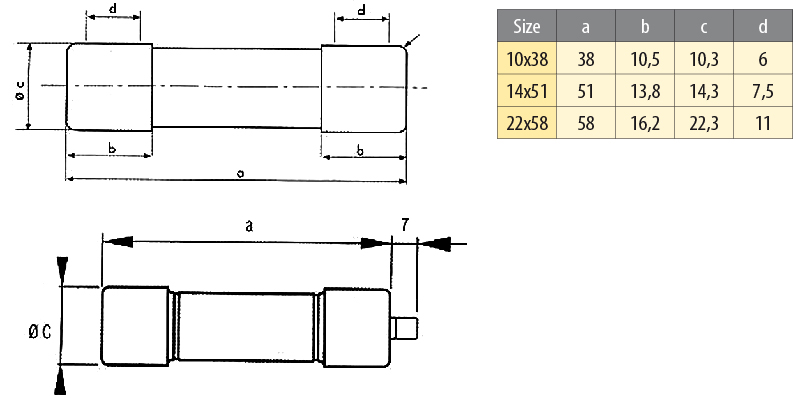

Dimensions:
22x58
Power dissipation (W):
16
Operating joule integral (A2s):
12.500
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
Net weight of the product
0.061 kg
Customs tariff
85361090

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895356462
Basic packaging weight
0.44 kg
Basic packaging volume
0.3

Transport packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895356462
Transport packaging weight
0.44 kg
Transport packaging volume
0.3
Pallet quantity
15000
Pallet volume
450
Classification
EC002704
Class name
Cylindrical fuse
Breaking capacity
200kA
Nominal current
100A
Rated voltage
Other
Size
22x58 mm
Utilization category
Other
ETIM Classification – Version 7.0

Images & Diagrams
