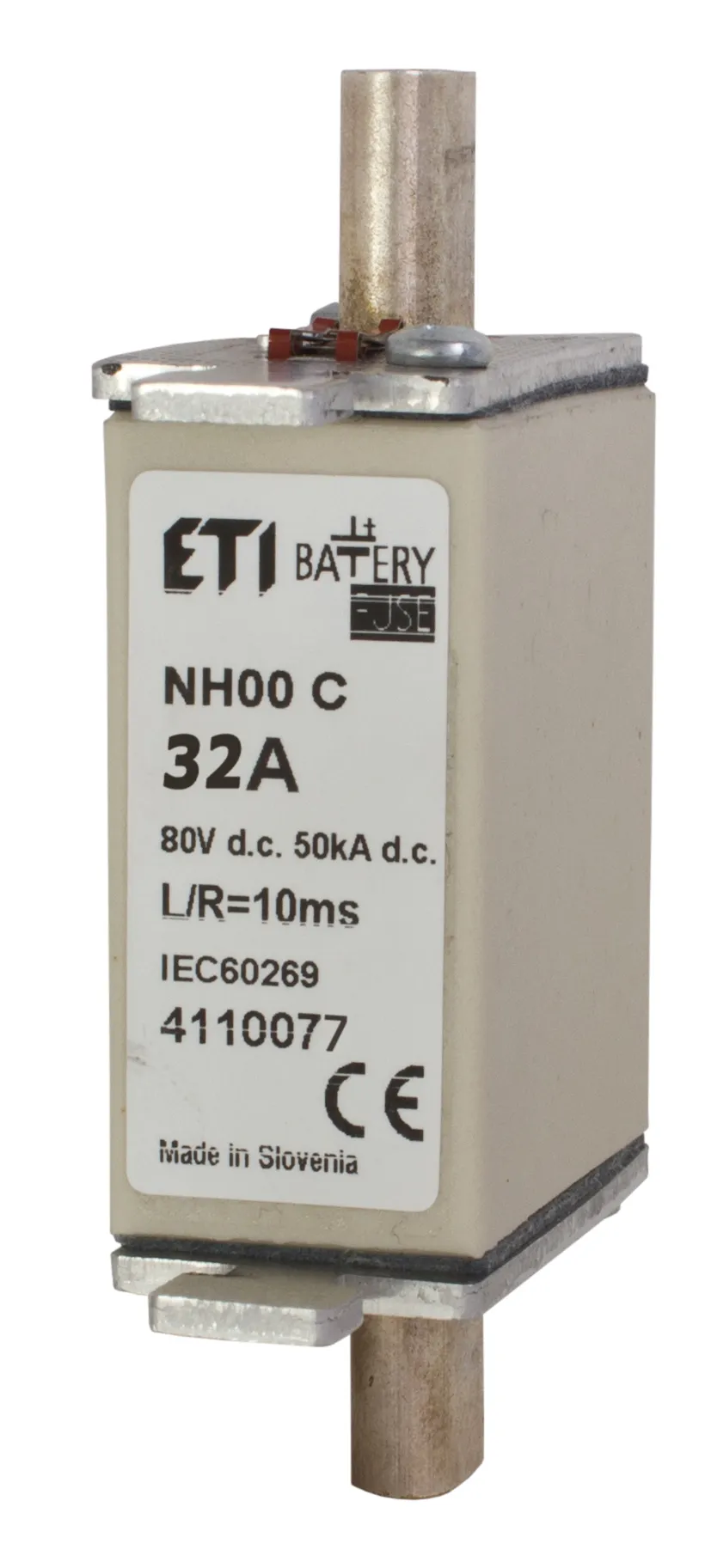

Fuse link NH000 gBat 32A/80V DC 004110077
Specifications
- ETI Code:
- 004110077
- Description:
- NH000 gBat 32A/80V DC
- Class name:
- Fuse link
- efuse:
- 1
- Rated current (A):
- 32
- Type:
- NH
- Standards:
- IEC 60269
- Size:
- NH000
- Characteristics:
- gBat
- Rated DC voltage (V):
- 80
- Indicator:
- Top fuse status indicator
- Breaking capacity DC (kA):
- 50
- Power dissipation (W):
- 6,6
- Power dissipation (0,7xIn) (W):
- 3
- Operating joule integral (A2s):
- 1.058
- L/R (ms):
- 10
- Prearcing joule integral (A2s):
- 920
- Application:
- Battery protection
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895758396
- Net weight of the product
- 120 g
- Customs tariff
- 85361050
- logis_net_width
- 21 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 52 mm
Level 1 Packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895725077
- Basic packaging weight
- 0.36 kg
Level 2 Packaging
- Transport packaging quantity
- 120
- EAN code for a transport packaging
- 3838895725084
- Transport packaging weight
- 16.3 kg
- Pallet quantity
- 6240
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH000
- Rated current
- 32
- Rated voltage
- 80
- Voltage type
- DC
- Rated switching capacity
- 50
- Utilization category
- Other
- Type of fuse status indicator
- Top fuse status indicator
