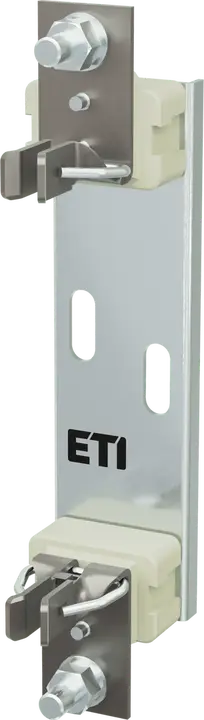

PK 1XL M10-M10 1500V 1p Fuse - base
- ETI Code:
- 004132017
- UL certificate:
- E356295
- IP rating:
- IP00
- Type description:
- PK
- Size:
- NH1XL
- Number of poles:
- 1
- Rated current:
- 250 A
- Rated AC voltage:
- 1500 V
- Rated DC voltage:
- 1500 V
- Breaking capacity AC:
- 200 kA
- Type of installation:
- Base plate mounting
- Overvoltage category:
- III
- Standards:
- IEC 60269, UL 4248-1, UL 4248-19
- Ambient temperature:
- -25/55 °C
- Conventional free air thermal current with fuse links:
- 160 A
- Conventional free air thermal current with solid links:
- 200 A
- Max. permissable power dissipation per fuse link:
- 32 W
- Rated operating mode:
- Uninterrupted
- Pollution degree:
- 3
- Rated frequency:
- 40/60 Hz
22 Logistics
Product
- EAN code for a single product
- 3838895985723
- Net weight of the product
- 675 g
- Net width
- 55 mm
- Net height
- 260 mm
- Net depth
- 84.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895654810
- Basic packaging weight
- 2.125 kg
- Basic Packaging Dimensions Height
- 0.115 m
- Basic Packaging Dimensions Width
- 0.169 m
- Basic Packaging Dimensions Depth
- 0.285 m
- Basic packaging volume
- 0.006 m³
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838895654827
- Transport packaging weight
- 11.08 kg
- Transport Packaging Dimensions Height
- 0.285 m
- Transport Packaging Dimensions Width
- 0.343 m
- Transport Packaging Dimensions Depth
- 0.363 m
- Transport packaging volume
- 0.035 m³
- Pallet quantity
- 270 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- Other
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 250 A
ETIM Classification – Version 9.0
