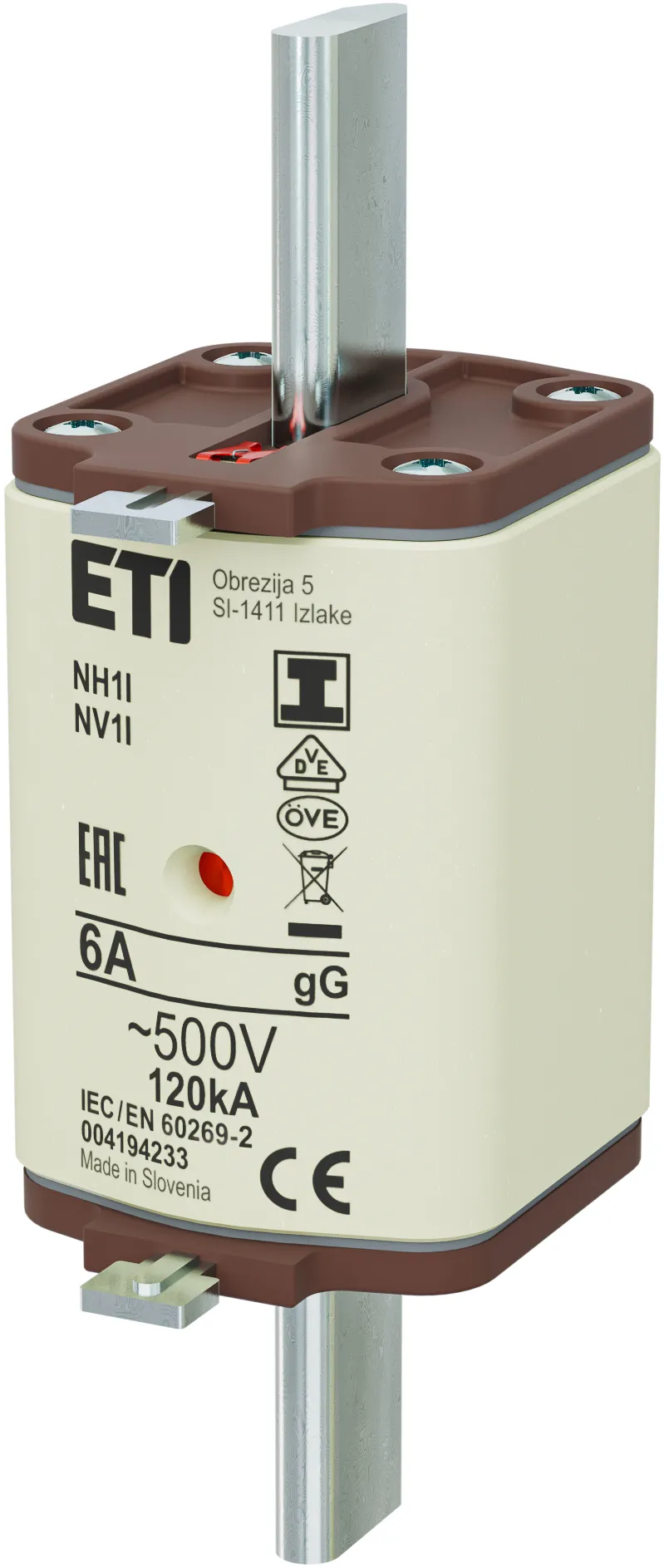

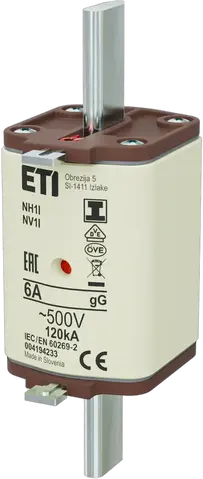

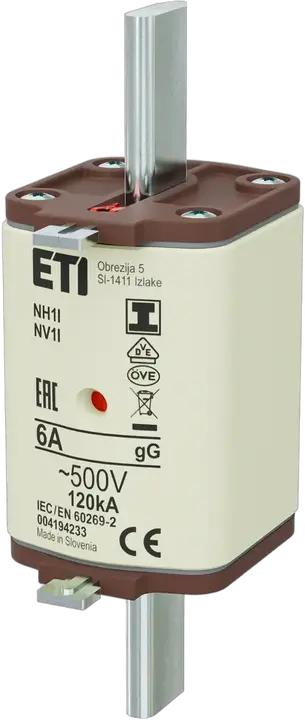

Fuse link NH1/I gG 6A/500V 004194233
Specifications
- ETI Code:
- 004194233
- Description:
- NH1/I gG 6A/500V
- Class name:
- Fuse link
- Type:
- NH-I
- Size:
- NH1
- Rated current (A):
- 6A
- Rated AC voltage (V):
- 500V
- Rated DC voltage (V):
- 250V
- Characteristics:
- gG
- Breaking capacity AC (kA):
- 120kA
- Application:
- For cable protection
- Indicator:
- Combination fuse status indicator
- Power dissipation (W):
- 2.5W
- Operating joule integral (A2s):
- 162
- Prearcing joule integral (A2s):
- 20
- Standards:
- IEC 60269-1,IEC 60269-2
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895846741
- Net weight of the product
- 420 g
- Customs tariff
- 85361010
- logis_net_width
- 46 mm
- logis_net_height
- 136 mm
- logis_net_depth
- 65 mm
Basic packaging
- Basic packaging quantity
- 3
- EAN code for a basic packaging
- 3838895846758
- Basic packaging weight
- 1.33 kg
Transport packaging
- Transport packaging quantity
- 24
- EAN code for a transport packaging
- 3838895846765
- Transport packaging weight
- 10.99 kg
- Pallet quantity
- 1248
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- NH1
- Rated current
- 6
- Rated voltage
- 500
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- Yes
