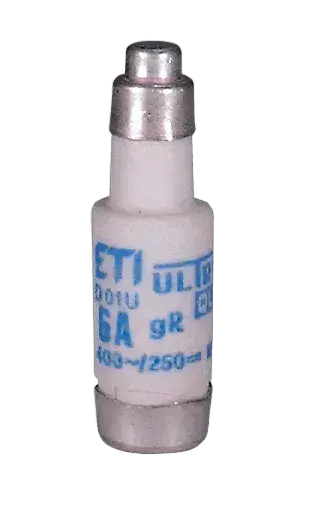

Fuse link D01 UQ gR 6A/400V 004311003

Specifications

ETI Code:
004311003
Description:
D01 UQ gR 6A/400V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
D0
Size:
D01
Rated current (A):
6
Rated AC voltage (V):
400
Rated DC voltage (V):
250
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
E14
Indicator:
Top fuse status indicator
Power dissipation (W):
4
Operating joule integral (A2s):
20
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838400051899
Net weight of the product
6.6  g
Customs tariff
85361010
logis_net_width
11  mm
logis_net_height
36  mm
logis_net_depth
11  mm

Level 1 Packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895013419
Basic packaging weight
0.06  kg

Level 2 Packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895163985
Transport packaging weight
3.33  kg
Pallet quantity
85000
Classification
EC001642
Class name
D0-system fuse link
Max. rated operation voltage Ue AC
400
Rated voltage DC
250
Application
For protection of semiconductor devices
Breaking capacity
50
Type of fuse status indicator
Top fuse status indicator
Construction size
D01
Rated current
6A
Rated voltage
400V
Colour code
Green
Utilization category
Other
ETIM Classification – Version 7.0
