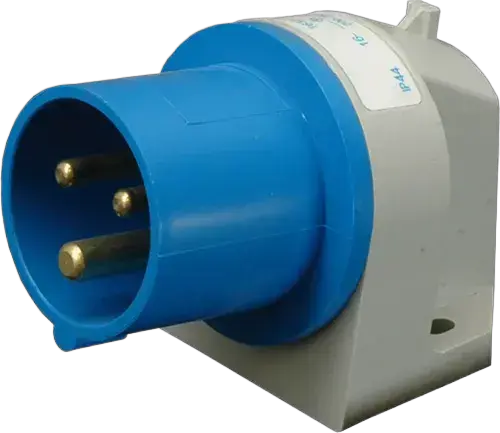

CEE Socket ER 1632 004482129
Specifications
- ETI Code:
- 004482129
- Description:
- ER 1632
- Class name:
- CEE Socket
- Rated current (A):
- 16
- Rated voltage (V):
- 230
- Number of poles:
- 2+PE
- IP rating:
- IP44
- Type: socket/plug:
- Wall plug
Documents
Logistic Data
Product
- Customs tariff
- 85366990
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895675716
- Basic packaging weight
- 0.12 kg
Transport packaging
- Transport packaging quantity
- 12
- EAN code for a transport packaging
- 3838895675723
- Transport packaging weight
- 1.44 kg
- Pallet quantity
- 1260
ETIM Clasification
- Classification
- EC001319
- Class name
- CEE plug for mounting on machines and equipment
- IEC-amperage
- 16A
- Voltage according to EN 60309-2
- 230 V (50+60 Hz) blue
- Number of poles
- 2
- Clock hour position
- 6h
- Identification colour
- Blue
- Degree of protection (IP)
- IP44
- Connection system
- Screwed terminal
- Construction type
- Built-up device plug
- Insert direction
- Straight
- Material
- Plastic
