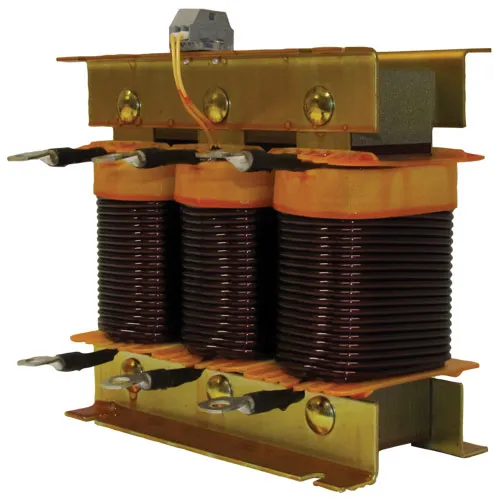

Detuning reactor HFL 7/15 Cu 004656803
Specifications
- ETI Code:
- 004656803
- Description:
- HFL 7/15 Cu
- Class name:
- Detuning reactor
- Rated current (A):
- 21.7A
- Type:
- copper wire
- Filtering factor:
- 0.07%
- Inductance (µH):
- 2560μH
- Heat insulation:
- F (155°C)
- Thermal protection (°C) NC contact:
- 90°C
Documents
Logistic Data
Product
- Net weight of the product
- 9.5 kg
- Customs tariff
- 85049013
- logis_net_width
- 180 mm
- logis_net_height
- 187 mm
- logis_net_depth
- 94 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895697770
- Transport packaging weight
- 9.5 kg
- Pallet quantity
- 363
ETIM Clasification
- Classification
- EC002563
- Class name
- Coil for low-voltage
- Suitable as interference suppression reactance coil
- Yes
- Number of poles, primary side
- 3
- Rated operating frequency
- 50…50Hz
- Max. rated operation voltage Ue
- 400V
- Degree of protection (IP)
- IP00
- Resonance frequency
- 189Hz
HFL 7/15 Cu
