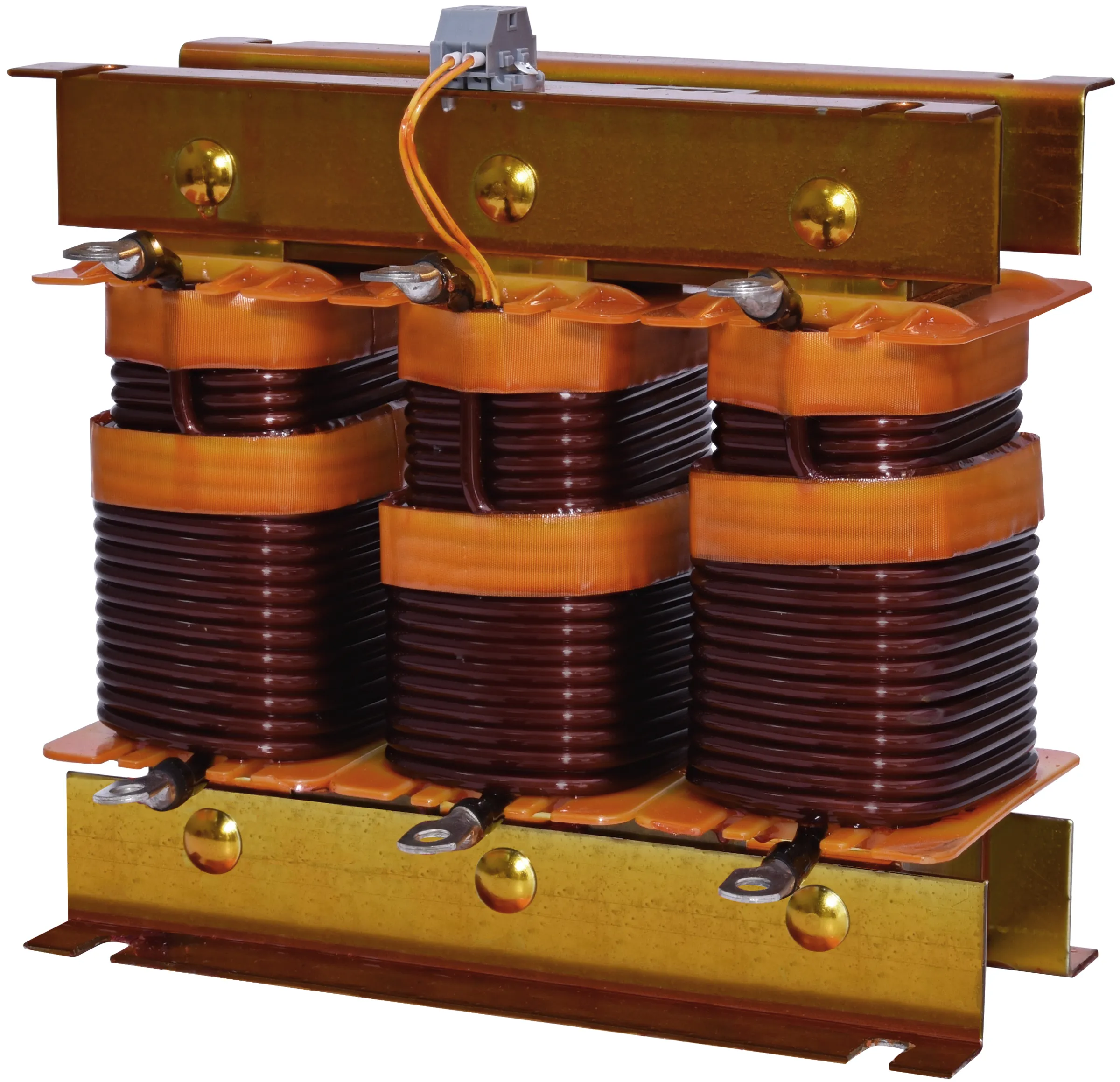

Detuning reactor HFL 7/25 Cu 004656805
Specifications
- ETI Code:
- 004656805
- Description:
- HFL 7/25 Cu
- Class name:
- Detuning reactor
- Type (description):
- copper wire
- Rated current (A):
- 36.1A
- Filtering factor:
- 0.07%
- Inductance (µH):
- 1530μH
- Thermal protection (°C) NC contact:
- 90°C
- Reactive power (kVAr):
- 25
- Heat insulation:
- F (155°C)
Documents
Logistic Data
Product
- Net weight of the product
- 16.5 kg
- Customs tariff
- 85049013
- logis_net_width
- 240 mm
- logis_net_height
- 237 mm
- logis_net_depth
- 104 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895697794
- Transport packaging weight
- 16.5 kg
- Pallet quantity
- 6
ETIM Clasification
- Classification
- EC002563
- Class name
- Coil for low-voltage
- Suitable as interference suppression reactance coil
- Yes
- Number of poles, primary side
- 3
- Rated operating frequency
- 50…50Hz
- Max. rated operation voltage Ue
- 400V
- Degree of protection (IP)
- IP00
- Resonance frequency
- 189Hz
