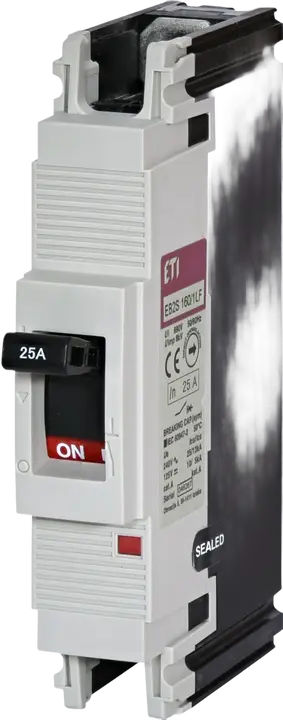

Molded Case Circuit Breaker EB2S 160/1LF 25A 1p 004671003
Specifications
- ETI Code:
- 004671003
- Description:
- EB2S 160/1LF 25A 1p
- Class name:
- Molded Case Circuit Breaker
Documents
Logistic Data
Product
- Net weight of the product
- 0.4 kg
- Customs tariff
- 85362010
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895409366
- Transport packaging weight
- 0.5 kg
- Pallet quantity
- 1336
ETIM Clasification
- Classification
- EC000228
- Class name
- Power circuit-breaker for trafo/generator/installation protection
- Rated permanent current Iu
- 25A
- Rated voltage
- 230…230V
- Integrated earth fault protection
- No
- Type of electrical connection of main circuit
- Screw connection
- Device construction
- Complete device in housing
- Suitable for DIN rail (top hat rail) mounting
- No
- DIN rail (top hat rail) mounting optional
- No
- With switched-off indicator
- No
- With under voltage release
- No
- Number of poles
- 1
- Position of connection for main current circuit
- Front side
- Type of control element
- Toggle
- Complete device with protection unit
- Yes
- Motor drive integrated
- No
- Motor drive optional
- No
- Degree of protection (IP)
- IP20
