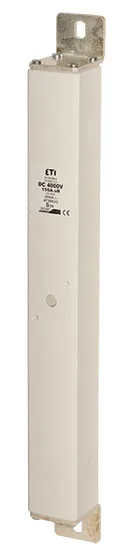

Fuse link NHS1/394/M aR 150A/4000V DC 004735623
Specifications
- ETI Code:
- 004735623
- Description:
- NHS1/394/M aR 150A/4000V DC
- Class name:
- Fuse link
- efuse:
- 1
- Size:
- NH1
- Type:
- NH-S
- Rated current (A):
- 150A
- Rated DC voltage (V):
- 4000V
- Characteristics:
- aR
- L/R (ms):
- 15ms
- Breaking capacity DC (kA):
- 30kA
- Application:
- Heating system in railway vagon
- Indicator:
- Centre trip indicator for MK
- Power dissipation (W):
- 155W
- Operating joule integral (A2s):
- 31000
- Prearcing joule integral (A2s):
- 3388
- Standards:
- IEC 60269-4,IEC 60077-5
Documents
Logistic Data
Product
- EAN code for a single product
- 3838400063328
- Net weight of the product
- 1800 g
- Customs tariff
- 85351000
- logis_net_width
- 42 mm
- logis_net_height
- 418 mm
- logis_net_depth
- 48 mm
Basic packaging
- Basic packaging quantity
- 2
Transport packaging
- Transport packaging quantity
- 2
- EAN code for a transport packaging
- 3838400069016
- Transport packaging weight
- 3.8 kg
- Pallet quantity
- 120
ETIM Clasification
- Classification
- EC000055
- Class name
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 150
- Rated voltage
- 4000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- aR (accompanied semiconductor protection)
- Type of fuse status indicator
- Centre fuse status indicator
- Insulated metal gripping lugs (IMGL)
- No
