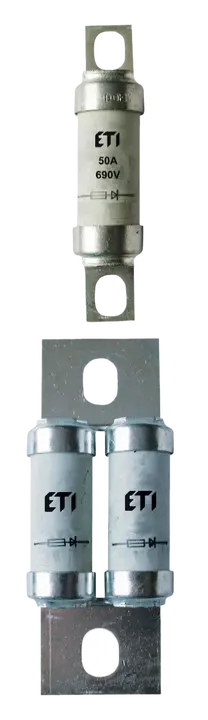

Fuse link BS17DUQ/70/160A/690V 004750728

Specifications

ETI Code:
004750728
Description:
BS17DUQ/70/160A/690V
Class name:
Fuse link
efuse:
1
Product group:
Semiconductor Protection
Type:
BS
Size:
BS17D
Rated current (A):
160
Rated AC voltage (V):
690
Rated DC voltage (V):
350
Characteristics:
aR
Breaking capacity AC (kA):
100
Breaking capacity DC (kA):
100
Application:
For protection of semiconductor devices
Dimensions:
screw 70mm
Power dissipation (W):
28
Operating joule integral (A2s):
14.500
Standards:
IEC 60269-4, BS88 Part 4

Documents

Product

EAN code for a single product

Net weight of the product
0.107  kg
Customs tariff
85361090
logis_net_width
37  mm
logis_net_height
94  mm
logis_net_depth
19  mm

Level 1 Packaging

Basic packaging quantity
5
EAN code for a basic packaging
3838895361657
Basic packaging weight
0.45  kg

Level 2 Packaging

Transport packaging quantity
10
EAN code for a transport packaging
3838895416289
Transport packaging weight
1.07  kg
Pallet quantity
7480
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Construction size
BS17D
Max. rated operation voltage Ue AC
690
Rated voltage DC
350
Rated current
160
Size
Other
Utilization category
Other
Nominal current
160A
Breaking capacity
100kA
ETIM Classification – Version 7.0
