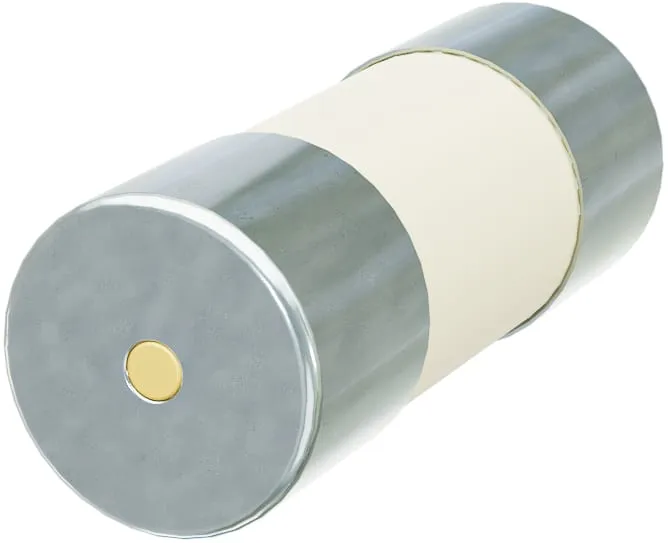

Fuse link CH22x58/P aR 100A/500V 002645125
Specifications
- ETI Code:
- 002645125
- Description:
- CH22x58/P aR 100A/500V
- Class name:
- Fuse link
- Product group:
- Semiconductor Protection
- Type:
- CH
- Size:
- 22x58
- Rated current (A):
- 100A
- Rated AC voltage (V):
- 500V
- Characteristics:
- aR
- Breaking capacity AC (kA):
- 200kA
- Breaking capacity DC (kA):
- 50kA
- Application:
- For protection of semiconductor devices
- Indicator:
- Striker pin status indicator
- Power dissipation (W):
- 16W
- Operating joule integral (A2s):
- 12500
- Standards:
- IEC 60269-4
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895362814
- Net weight of the product
- 0.061 kg
- Customs tariff
- 85361090
- logis_net_width
- 22 mm
- logis_net_height
- 58 mm
- logis_net_depth
- 22 mm
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895356547
- Transport packaging weight
- 0.44 kg
- Pallet quantity
- 11320
ETIM Clasification
- Classification
- EC002704
- Class name
- Miniature fuse
- Rated current
- 100A
