004774159

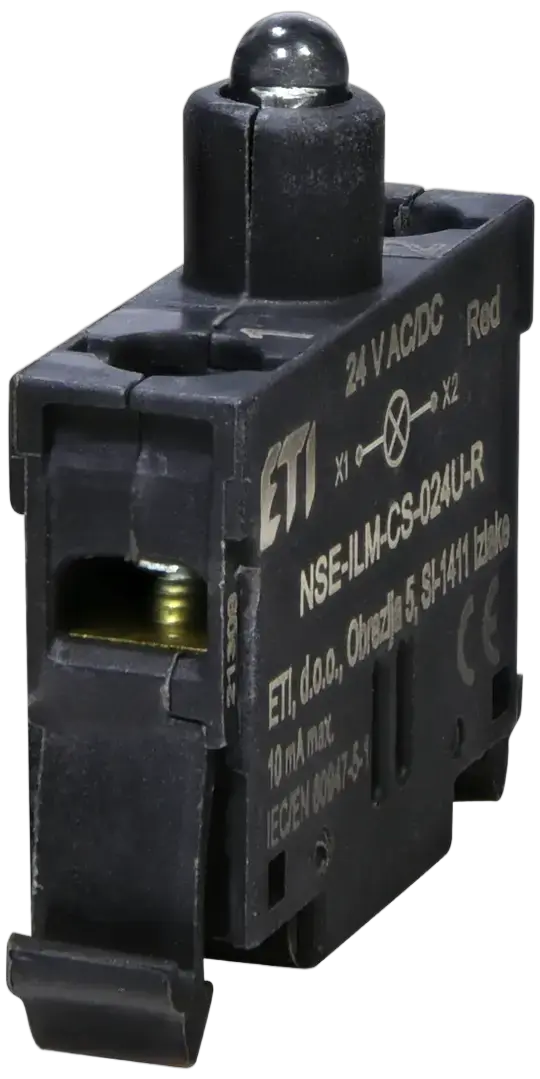

NSE-ILM-CS-024U-R Signal lamp
- ETI Code:
- 004774159
- Function:
- LED block
- Rated AC voltage:
- 24 V
- Rated DC voltage:
- 24 V
- Color:
- Red
- Rated Frequency:
- 50/60 Hz
- Standards:
- IEC 60947-5-1
- Application:
- IEC 60947-5-1
- IP rating:
- IP20
- Rated cross section:
- 0.5-2.5 mm²
- Working Temperature:
- -25-70 °C
- Voltage type:
- AC/DC
- Life (burning hours):
- 100,000 h
- Rated Insulation Voltage:
- 2,500 V
- Tightening torque:
- 0.8 Nm
21 Logistics
Product
- Net weight of the product
- 0.012 kg
- Net width
- 9.7 mm
- Net height
- 42.4 mm
- Net depth
- 38.45 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 7909712855683
- Basic packaging weight
- 0.016 kg
- Basic Packaging Dimensions Height
- 11.8 mm
- Basic Packaging Dimensions Width
- 130 mm
- Basic Packaging Dimensions Depth
- 200 mm
- Basic packaging volume
- 0.307 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838400152350
- Transport packaging weight
- 0.16 kg
- Transport Packaging Dimensions Height
- 11.8 mm
- Transport Packaging Dimensions Width
- 250 mm
- Transport Packaging Dimensions Depth
- 350 mm
- Transport packaging volume
- 1.032 dm³
- Pallet quantity
- 9,680 pcs
- Customs tariff
- 85318070
