002473022

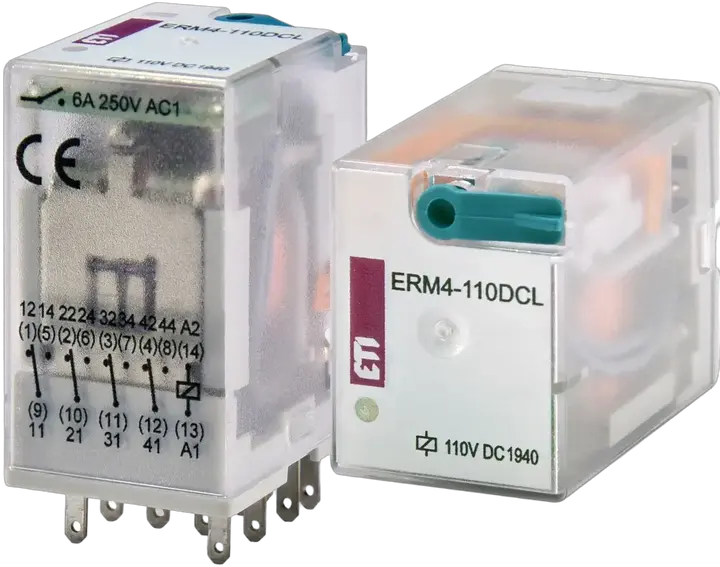

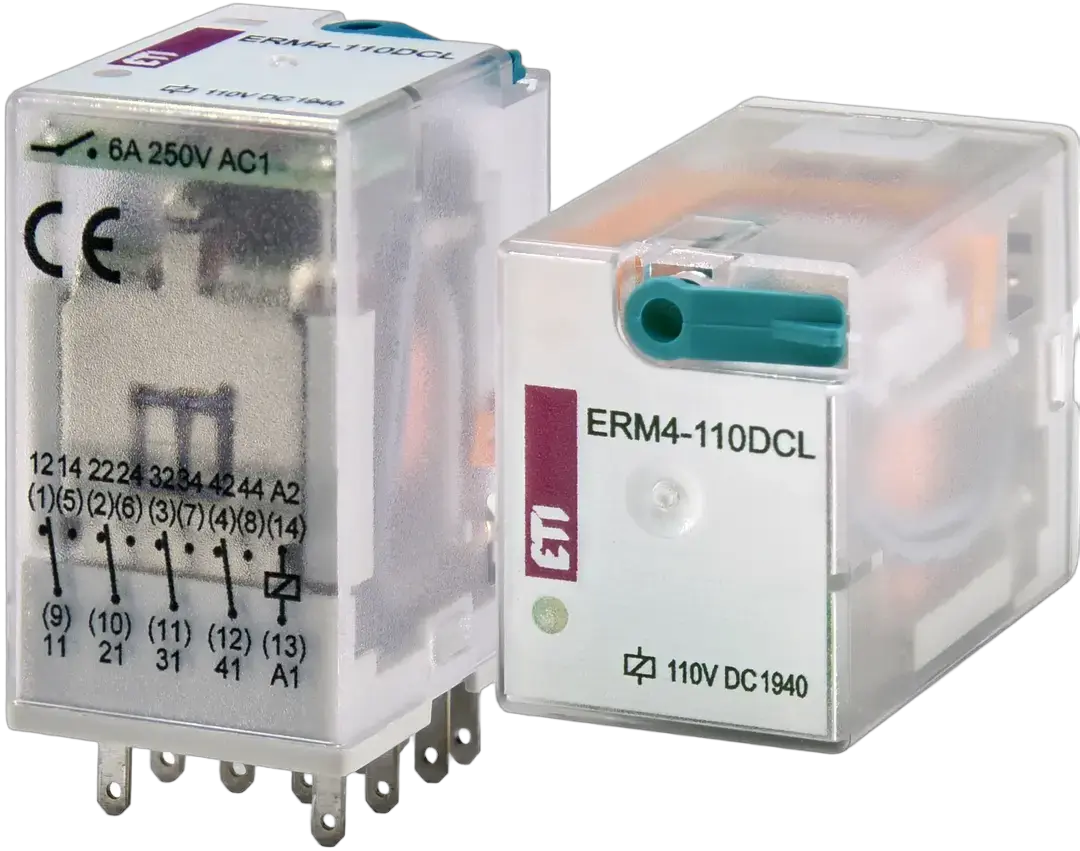

ERM4-110DCL Relay
- ETI Code:
- 002473022
- Maximum load capacity at AC1:
- 1,500 VA
- Rated current:
- 6 A
- Voltage type:
- DC
- Uc rated coil voltage:
- 110 V
- No. of CO contacts:
- 4
- Switching voltage:
- 250 V
- Function:
- Industrial plugin electromagnetic relays
3 Documents
21 Logistics
Product
- Net weight of the product
- 0.033 kg
- Net width
- 21.2 mm
- Net height
- 27.5 mm
- Net depth
- 42.25 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 10 pcs
- EAN code for a basic packaging
- 3838895704454
- Basic packaging weight
- 0.33 kg
- Basic Packaging Dimensions Height
- 60 mm
- Basic Packaging Dimensions Width
- 51 mm
- Basic Packaging Dimensions Depth
- 115 mm
- Basic packaging volume
- 0.352 dm³
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 3838895704461
- Transport packaging weight
- 3.4 kg
- Transport Packaging Dimensions Height
- 170 mm
- Transport Packaging Dimensions Width
- 130 mm
- Transport Packaging Dimensions Depth
- 203 mm
- Transport packaging volume
- 4.486 dm³
- Pallet quantity
- 14,700 pcs
- Customs tariff
- 85364900
12 ETIM
- Width
- 21.2 mm
- Nominal current
- 6 A
- Voltage type (operating voltage)
- DC
- Degree of protection (IP)
- IP40
- Voltage type for actuating
- DC
- Depth
- 35.6 mm
- Type of electric connection
- Plug-in connection
- Number of contacts as change-over contact
- 4
- Height
- 27.5 mm
- Drive, switching attitude
- Mono stable
- Rated control supply voltage DC(Min)
- 110 V
- Rated control supply voltage DC(Max)
- 110 V
ETIM Classification – Version 9.0
0 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
20 Tags
002473022RelayERM4-110DCLEVE/ETIRELElectromechanical RelaysIndustrial Plugin Electromagnetic RelaysDC coils4 pole4 poleInternationalAutomation, signaling and control devicesIndustrial, miniature and slim relays ETIRELPlug-in ERM relaysVoltage type: DCNo. of CO contacts: 4Function: Industrial plugin electromagnetic relaysSwitching voltage: 250 VUc rated coil voltage: 110 VRated current: 6 A/6 ARelay Rated current: 6 A/6 A Voltage type: DC Uc rated coil voltage: 110 V No. of CO contacts: 4 Function: Industrial plugin electromagnetic relays
Similar Products 17 All Products
002473000
ERM2-024DC
- Class name
- Relay
- Rated current
- 12 A
- Voltage type
- DC
- Uc rated coil voltage
- 24 V
- No. of CO contacts
- 2
002473001
ERM2-024DCL
- Class name
- Relay
- Rated current
- 12 A
- Voltage type
- DC
- Uc rated coil voltage
- 24 V
- No. of CO contacts
- 2

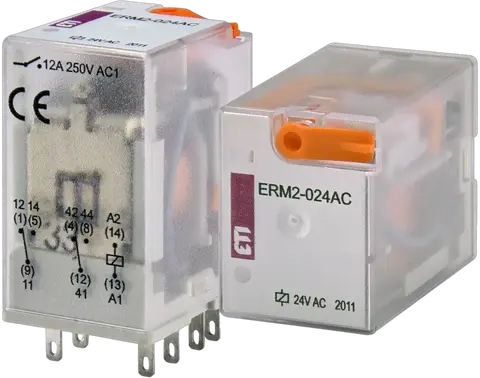

002473002
ERM2-024AC
- Class name
- Relay
- Rated current
- 12 A
- Voltage type
- AC
- Uc rated coil voltage
- 24 V
- No. of CO contacts
- 2
002473003
ERM2-024ACL
- Class name
- Relay
- Rated current
- 12 A
- Voltage type
- AC
- Uc rated coil voltage
- 24 V
- No. of CO contacts
- 2

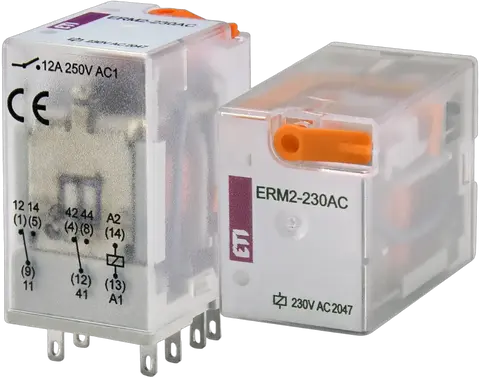

002473004
ERM2-230AC
- Class name
- Relay
- Rated current
- 12 A
- Voltage type
- AC
- Uc rated coil voltage
- 230 V
- No. of CO contacts
- 2
002473005
ERM2-230ACL
- Class name
- Relay
- Rated current
- 12 A
- Voltage type
- AC
- Uc rated coil voltage
- 230 V
- No. of CO contacts
- 2
002473006
ERM4-024DC
- Class name
- Relay
- Rated current
- 6 A
- Voltage type
- DC
- Uc rated coil voltage
- 24 V
- No. of CO contacts
- 4
002473007
ERM4-024DCL
- Class name
- Relay
- Rated current
- 6 A
- Voltage type
- DC
- Uc rated coil voltage
- 24 V
- No. of CO contacts
- 4

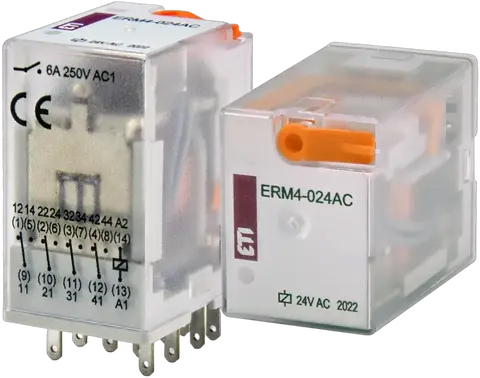

002473008
