002470280
Obsolete

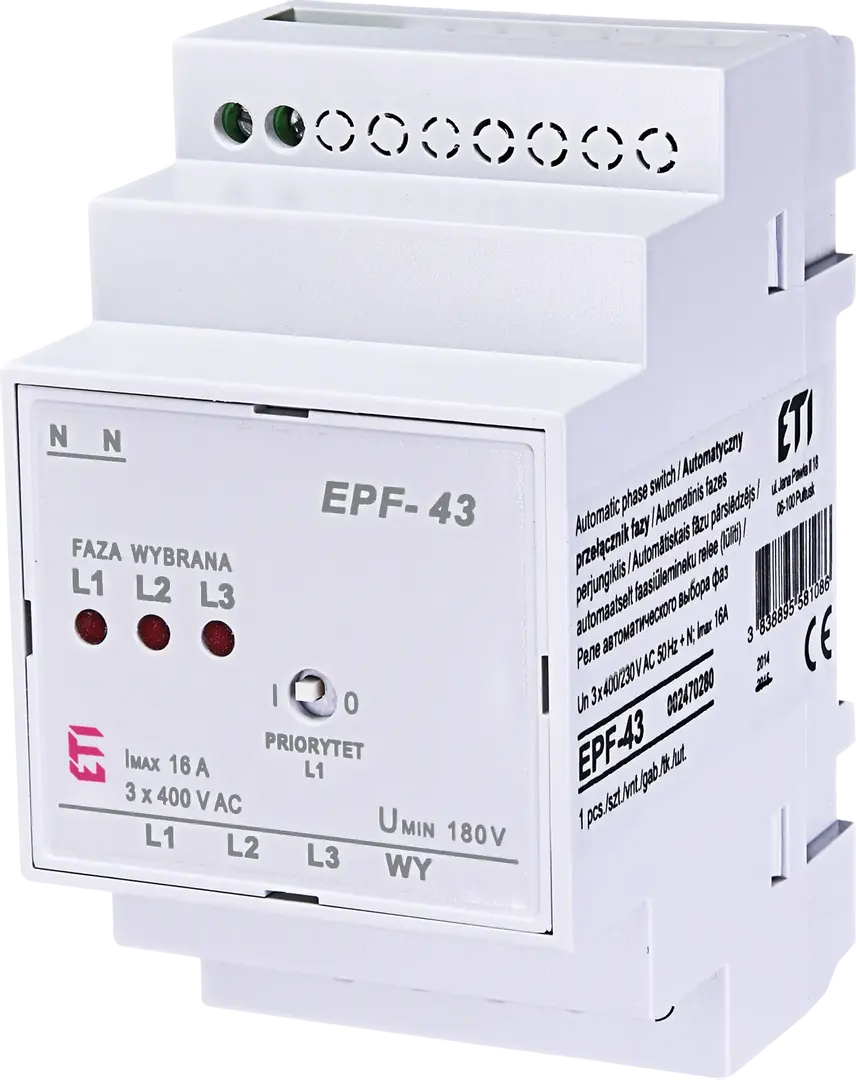

* EPF-43 Control relay
- ETI Code:
- 002470280
- Has overvoltage protection:
- No
- Height:
- 90 mm
- Width:
- 54 mm
- Category:
- Automatic relay selection phase EPF
- Catalogue Group:
- Automatic Phase Switch
- Type description:
- Automatic relay selection phase EPF
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 400 V
- Type of Control:
- Automatic phase selection at 180V
- Voltage type:
- AC
- Rated current:
- 16 A
- No. of NO contacts:
- 1
12 Logistics
Product
- Net weight of the product
- 0.14 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895581086
- Basic packaging weight
- 0.144 kg
- Basic packaging volume
- 0.325 dm³
Transport Packaging
- Transport packaging quantity
- 4 pcs
- EAN code for a transport packaging
- 3838895581093
- Transport packaging weight
- 0.576 kg
- Transport packaging volume
- 1.3 dm³
- Pallet quantity
- 5,540 pcs
- Customs tariff
- 85364900
13 ETIM
- Width
- 54 mm
- Max. permitted off-delay time
- 0.2 s
- Voltage type (supply voltage)
- AC
- Type of voltage measuring range
- AC
- Rated switch current
- 16 A
- Number of contacts as normally open contact
- 1
- Depth
- 65 mm
- Type of electric connection
- Clip connection
- Height
- 90 mm
- Response value voltage(Min)
- 180 V
- Supply voltage AC 50 Hz(Min)
- 400 V
- Supply voltage AC 50 Hz(Max)
- 400 V
- Response value voltage(Max)
- 180 V
ETIM Classification – Version 9.0
