002471408

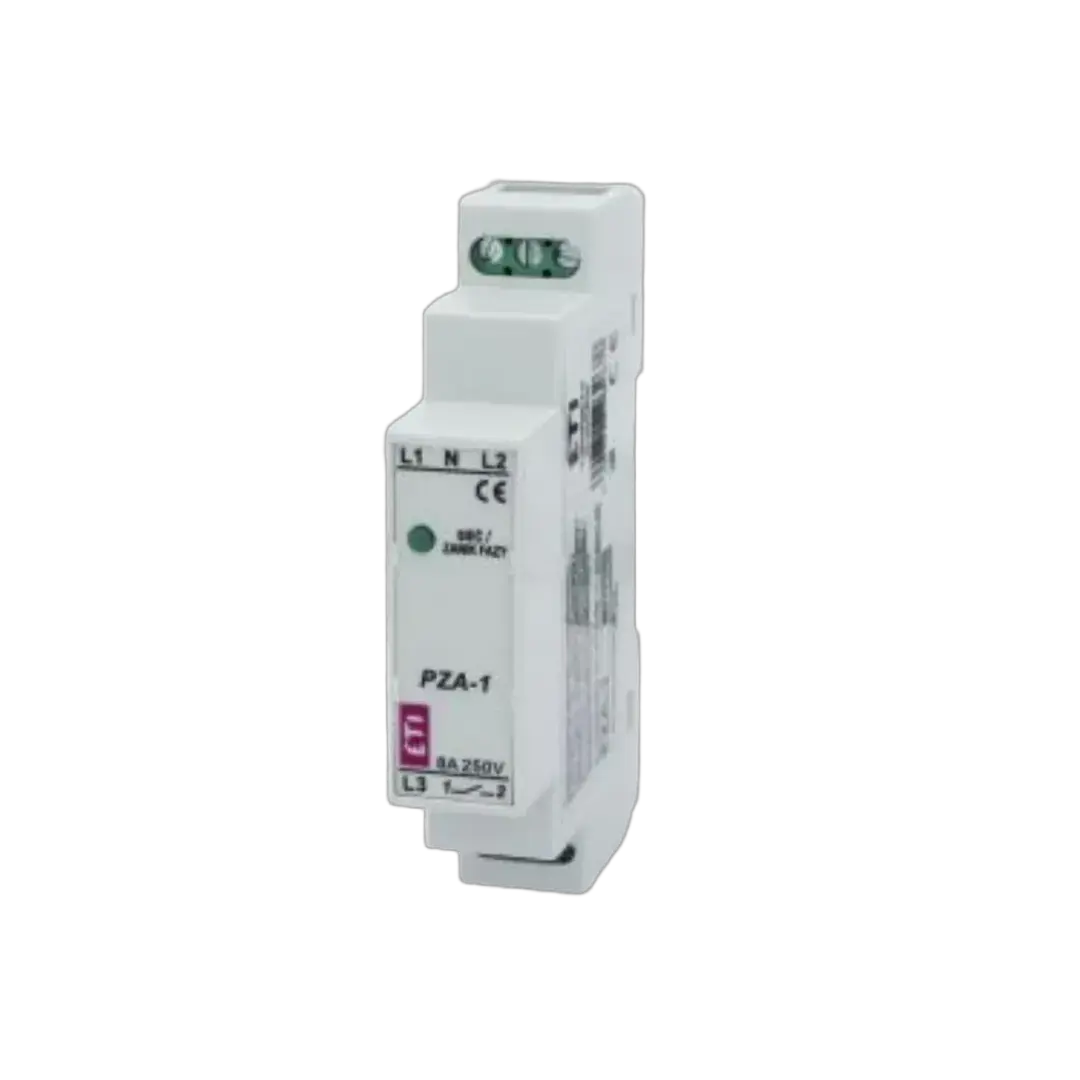

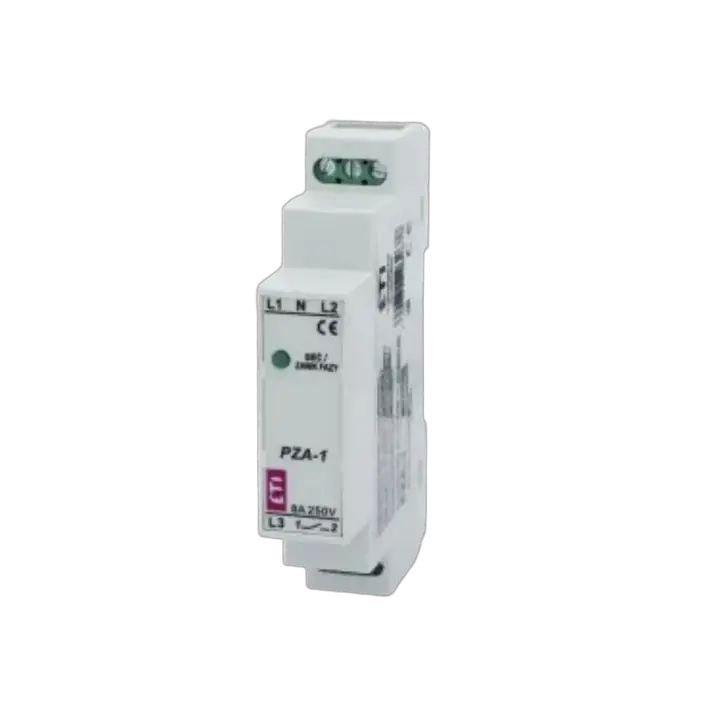

PZA-1 Control relay
- ETI Code:
- 002471408
- Function:
- Monitoring and Control relays
- Application:
- Provides protection for three-phase motors against phase failure, voltage asymmetry and phase voltage drop.
- Type of control:
- Voltage imbalance, Phase failure, Alarm and control
- Supply voltage:
- 400 V
- Voltage type:
- AC
- Max. contact current:
- 8 A
- Rated current:
- 8 A
- Max. load capacity at AC1:
- 2,000 VA
- Clamping cross-section:
- 0.5-2.5 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP20
- No. of NO contacts:
- 1
- No. of CO contacts:
- 1
2 Documents
11 Logistics
Product
- Net weight of the product
- 0.069 kg
- Stock unit of measure
- pcs
Transport Packaging
- Intermediate packaging quantity
- 10 pcs
- EAN code for a intermediate packaging
- 5904722934627
- Intermediate packaging weight
- 0.714 kg
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838895792321
- Transport packaging weight
- 0.857 kg
- Transport packaging volume
- 2.7 dm³
- Pallet quantity
- 4,800 pcs
- Customs tariff
- 85364900
11 ETIM
- Phase failure detection
- ✓
- Width
- 18 mm
- Number of contacts as normally closed contact
- 1
- Phase imbalance monitoring
- ✓
- Depth
- 65 mm
- Type of electric connection
- Clip connection
- Height
- 90 mm
- Voltage measuring range(Min)
- 175 V
- Supply voltage AC 50 Hz(Min)
- 400 V
- Supply voltage AC 50 Hz(Max)
- 400 V
- Voltage measuring range(Max)
- 400 V
ETIM Classification – Version 9.0
