002471517

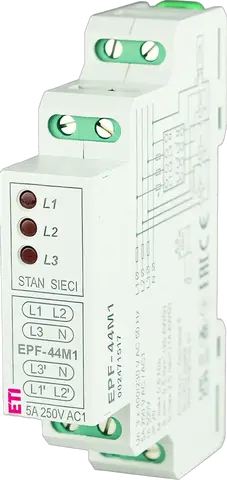

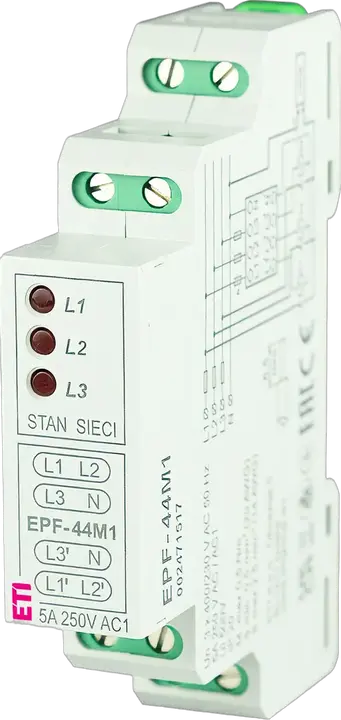

EPF-44M1 Control relay
- ETI Code:
- 002471517
- Indicator:
- LED
- Directives:
- RoHS
- Function:
- Automatic Phase Changeover Relay with L1 Priority, Phase Loss Detection, and Under-/Overvoltage Monitoring.
- Application:
- Building automation and electrical installations
- Type of control:
- Phase failure, Sequence phase, Umax, Umin, Voltage imbalance
- Supply voltage:
- 400 V
- Voltage type:
- AC
- Max. contact current:
- 5 A
- Rated current:
- 5 A
- Rated frequency:
- 47/52 Hz
- Clamping cross-section:
- 0.5-2.5 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP20
- No. of CO contacts:
- 1
- To use with:
- Stycznikami
2 Documents
21 Logistics
Product
- Net weight of the product
- 0.062 kg
- Net width
- 19 mm
- Net height
- 90 mm
- Net depth
- 70 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400177834
- Basic packaging weight
- 0.069 kg
- Basic Packaging Dimensions Height
- 90 mm
- Basic Packaging Dimensions Width
- 19 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.12 dm³
Transport Packaging
- Transport packaging quantity
- 12 pcs
- EAN code for a transport packaging
- 3838400177827
- Transport packaging weight
- 0.828 kg
- Transport Packaging Dimensions Height
- 218 mm
- Transport Packaging Dimensions Width
- 121 mm
- Transport Packaging Dimensions Depth
- 80 mm
- Transport packaging volume
- 2.11 dm³
- Pallet quantity
- 4,320 pcs
- Customs tariff
- 85364900
2 Diagrams
28 Tags
002471517Control relayEPF-44M1EVE/ETIRELControl equipmentRelaysRelaysDigital time switchDigital time switchInternationalAutomation, signaling and control devicesMonitoring and control relays ETIRELNo. of NC contacts: 0Voltage type: ACClamping cross-section: 0.5 mm²-2.5 mm²No. of CO contacts: 1Application: Building automation and electrical installationsType of control: Phase failure, Sequence phase, Umax, Umin, Voltage imbalanceFunction: Automatic Phase Changeover Relay with L1 Priority, Phase Loss Detection, and Under-/Overvoltage Monitoring.IP rating: IP20Type of installation: TH 35No. of NO contacts: 0Supply voltage: 400 V-400 VMax. contact current: 5 ARated current: 5 A/5 ATo use with: StycznikamiRated frequency: 47 Hz/52 HzControl relay Function: Automatic Phase Changeover Relay with L1 Priority, Phase Loss Detection, and Under-/Overvoltage Monitoring. Application: Building automation and electrical installations Type of control: Phase failure, Sequence phase, Umax, Umin, Voltage imbalance Supply voltage: 400 V-400 V Voltage type: AC Max. contact current: 5 A Rated current: 5 A/5 A Rated frequency: 47 Hz/52 Hz Clamping cross-section: 0.5 mm²-2.5 mm² Type of installation: TH 35 IP rating: IP20 No. of NO contacts: 0 No. of CO contacts: 1 No. of NC contacts: 0 To use with: Stycznikami
