002470096

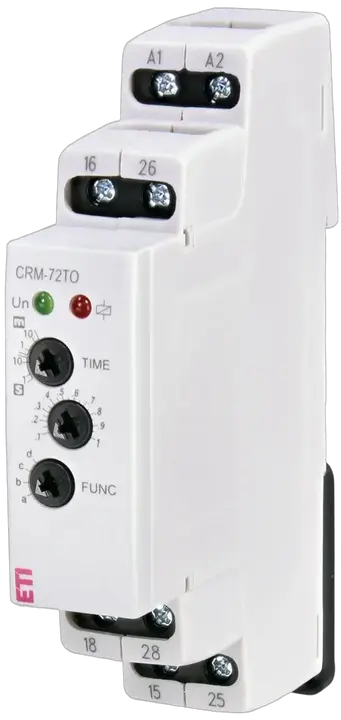

CRM-72TO UNI Time relay
- ETI Code:
- 002470096
- Time range:
- 0.1 s - 10 min
- Function:
- Time relay
- Application:
- Emergency lighting, emergency ventilation, elevators, escalators, and systems requiring operation after a power failure
- Type of control:
- Multifunction timer
- Supply voltage:
- 12-240 V
- Voltage type:
- AC/DC
- Max. contact current:
- 8 A
- Rated current:
- 8 A
- Rated frequency:
- 50/60 Hz
- Max. load capacity at AC1:
- 2,000 VA
- Clamping cross-section:
- 0.5-2.5 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP40, IP20
- No. of NO contacts:
- 2
- No. of CO contacts:
- 2
- No. of NC contacts:
- 2
21 Logistics
Product
- Net weight of the product
- 0.082 kg
- Net width
- 17.6 mm
- Net height
- 93 mm
- Net depth
- 64.4 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400120373
- Basic packaging weight
- 0.082 kg
- Basic Packaging Dimensions Height
- 97 mm
- Basic Packaging Dimensions Width
- 25 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838400120366
- Transport packaging weight
- 0.138 kg
- Transport Packaging Dimensions Height
- 284 mm
- Transport Packaging Dimensions Width
- 102 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 4,600 pcs
- Customs tariff
- 85364900
1 ETIM
- Voltage type (supply voltage)
- AC/DC
ETIM Classification – Version 9.0
28 Tags
002470096Time relayCRM-72TO UNIEVE/ETIRELControl equipmentRelaysRelaysTime relayTime relayInternationalAutomation, signaling and control devicesTimers and digital time relays ETIRELNo. of NC contacts: 2Voltage type: AC/DCClamping cross-section: 0.5 mm²-2.5 mm²No. of CO contacts: 2Application: Emergency lighting, emergency ventilation, elevators, escalators, and systems requiring operation after a power failureType of Control: Multifunction timerFunction: Time relayIP rating: IP20, IP40Type of Installation: DIN railMaximum load capacity at AC1: 2000 VANo. of NO contacts: 2Supply Voltage: 12 V-240 VMax Contact Current: 8 ARated current: 8 A/8 ARated Frequency: 50 Hz/60 HzTime relay Function: Time relay Application: Emergency lighting, emergency ventilation, elevators, escalators, and systems requiring operation after a power failure Type of Control: Multifunction timer Supply Voltage: 12 V-240 V Voltage type: AC/DC Max Contact Current: 8 A Rated current: 8 A/8 A Rated Frequency: 50 Hz/60 Hz Maximum load capacity at AC1: 2000 VA Clamping cross-section: 0.5 mm²-2.5 mm² Type of Installation: DIN rail IP rating: IP20, IP40 No. of NO contacts: 2 No. of CO contacts: 2 No. of NC contacts: 2
