002471557

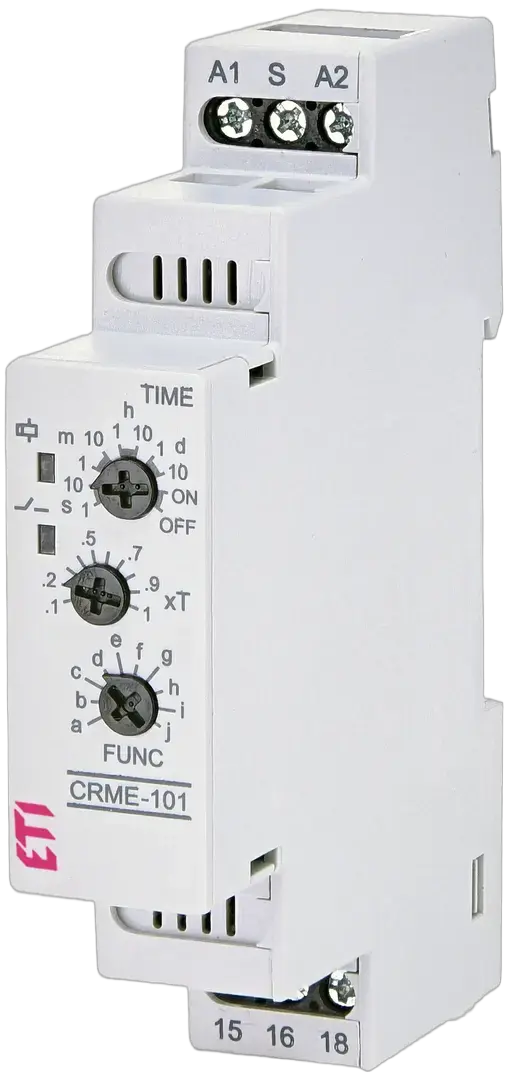

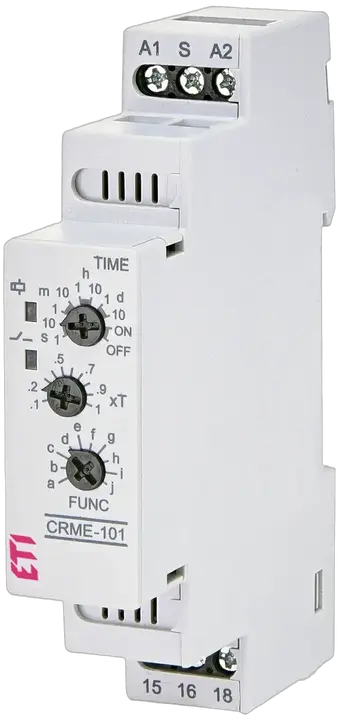

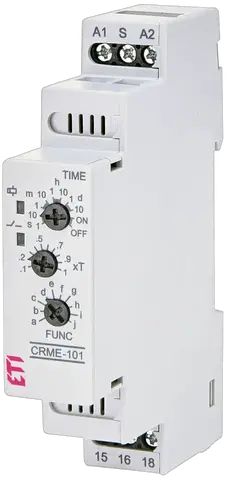

CRME-101 Time relay
- ETI Code:
- 002471557
- Time range:
- 0,1 s – 10 dni
- Function:
- Time relay
- Application:
- Industrial automation, control of lighting, ventilation and pumps, as well as control and signalling systems.
- Type of control:
- Multifunction timer
- Supply voltage:
- 12-240 V
- Voltage type:
- AC/DC
- Max. contact current:
- 16 A
- Rated current:
- 16 A
- Rated frequency:
- 50 Hz
- Max. load capacity at AC1:
- 4,000 VA
- Clamping cross-section:
- 0.5-2.5 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP40, IP20
- No. of NO contacts:
- 1
- No. of CO contacts:
- 1
- No. of NC contacts:
- 1
3 Documents
12 Logistics
Product
- Net weight of the product
- 0.07 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895821229
- Basic packaging weight
- 0.088 kg
- Basic packaging volume
- 0.17 dm³
Transport Packaging
- Transport packaging quantity
- 400 pcs
- EAN code for a transport packaging
- 3838895821236
- Transport packaging weight
- 35.2 kg
- Transport packaging volume
- 68 dm³
- Pallet quantity
- 6,000 pcs
- Customs tariff
- 85364900
18 ETIM
- 1st interval unit
- Seconds/minutes
- 2nd interval unit
- Minutes/hours
- Mounting method
- DIN rail
- Voltage type (supply voltage)
- AC/DC
- Type of excitation
- Digital with multi function
- Number of changeover switches
- 1
- Nominal switching current at 250 V AC
- 16 A
- Type of control voltage 1
- AC/DC
- Function
- Multi function
- Width in number of modular spacings
- 1
- 2nd interval(Min)
- 0.1
- Control voltage 1(Min)
- 12 V
- 1st interval(Min)
- 0.1
- Frequency control voltage 1(Min)
- 50 Hz
- 2nd interval(Max)
- 1
- Control voltage 1(Max)
- 240 V
- Frequency control voltage 1(Max)
- 60 Hz
- 1st interval(Max)
- 1
ETIM Classification – Version 9.0
