002472002

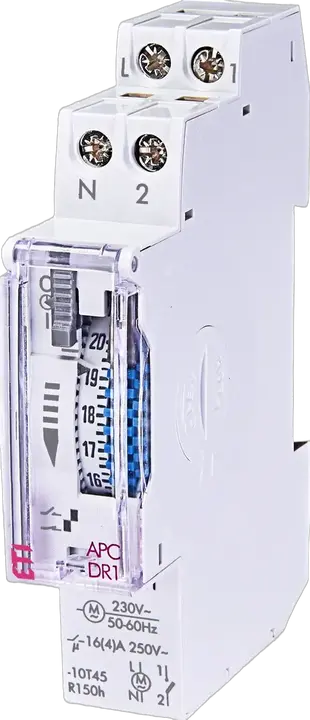

APC-DR1 Time relay
- ETI Code:
- 002472002
- Height:
- 90 mm
- Width:
- 17.5 mm
- Category:
- Analog Electromechanical time switch APC-D1, APC-DR1
- Catalogue Group:
- Time relay (Analog)
- Catalogue Subgroup:
- Time switch
- Type of Installation:
- TH 35
- IP rating:
- IP20
- Time range:
- 15 min - 24 hours
- Type description:
- Analog Electromechanical time switch APC-D1, APC-DR1
- Type of contacts:
- 1xNO
- Voltage type:
- AC
- Number of contacts:
- 1
- Function:
- Time relay
- Maximum load capacity at AC1:
- 4,000 VA
- Number of Functions:
- 1
- No. of NO contacts:
- 1
- Supply Voltage:
- 230 V
- Rated current:
- 16 A
21 Logistics
Product
- Net weight of the product
- 0.095 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.12 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5904722951471
- Basic packaging weight
- 0.088 kg
- Basic Packaging Dimensions Height
- 103 mm
- Basic Packaging Dimensions Width
- 22 mm
- Basic Packaging Dimensions Depth
- 73 mm
- Basic packaging volume
- 0.165 dm³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895689751
- Transport packaging weight
- 2.192 kg
- Transport Packaging Dimensions Height
- 210 mm
- Transport Packaging Dimensions Width
- 150 mm
- Transport Packaging Dimensions Depth
- 160 mm
- Transport packaging volume
- 5.04 dm³
- Pallet quantity
- 3,600 pcs
- Customs tariff
- 85364900
20 ETIM
- Mains synchronous
- Yes
- Width
- 17.5 mm
- Suitable for manual operation
- Yes
- Number of channels
- 1
- Degree of protection (IP)
- IP20
- Contact type
- Normally open contact
- Mounting method
- DIN rail
- Voltage type (supply voltage)
- AC
- Autonomy in hours
- 150
- 24 h program
- Yes
- Nominal switching current at 250 V AC
- 16 A
- Depth
- 65 mm
- Shortest switching time channel 1
- 15 min
- Potential free switch contact
- Yes
- Height
- 90 mm
- Width in number of modular spacings
- 1
- Frequency supply voltage(Min)
- 50 Hz
- Supply voltage(Min)
- 230 V
- Frequency supply voltage(Max)
- 50 Hz
- Supply voltage(Max)
- 230 V
ETIM Classification – Version 9.0
