002470011

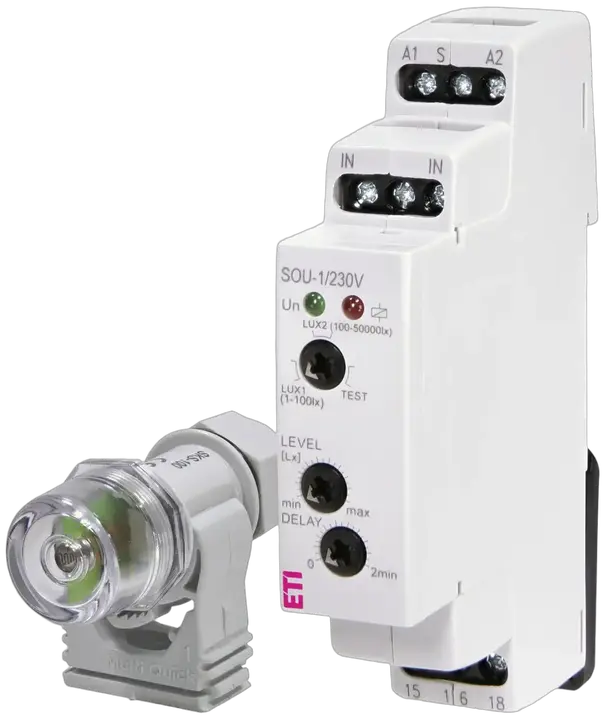

SOU-1/230V+senzor Twilight switch
- ETI Code:
- 002470011
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Depth:
- 68 mm
- Catalogue Group:
- Twillight and staircase switches
- Catalogue Subgroup:
- Twilight switch & Twilight switch sensor
- Rated Frequency:
- 50 Hz
- Type of Installation:
- TH 35
- IP rating:
- IP20
- Type description:
- Twilight switch SOU-1 + sensor
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 230 V
- Luminous flux:
- 1-50000 lx
- Number of contacts:
- 1
- Rated current:
- 16 A
- Maximum load capacity at AC1:
- 4,000 VA
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
- Type of contacts:
- 1xCO
- No. of CO contacts:
- 1
7 Documents
14 Logistics
Product
- Net weight of the product
- 0.063 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.09 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 8594030338360
- Transport packaging weight
- 0.103 kg
- Transport Packaging Dimensions Height
- 78 mm
- Transport Packaging Dimensions Width
- 97 mm
- Transport Packaging Dimensions Depth
- 61 mm
- Transport packaging volume
- 0.462 dm³
- Pallet quantity
- 1,920 pcs
- Customs tariff
- 85364900
16 ETIM
- Built-in depth
- 68 mm
- Max. conductor length light sensor
- 50 m
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Rated switch current
- 16 A
- Protection class light sensor
- II
- Mounting method light sensor
- Wall surface mounted
- Rated voltage
- 230 V
- Degree of protection (IP) light sensor
- IP65
- Max. incandescent lamp load
- 1,000 W
- Push button input
- Yes
- Width in number of modular spacings
- 1
- Adjustment range brightness value(Min)
- 1 lx
- Rated frequency(Min)
- 50 Hz
- Rated frequency(Max)
- 50 Hz
- Adjustment range brightness value(Max)
- 50,000 lx
ETIM Classification – Version 9.0
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
25 Tags
002470011Twilight switchSOU-1/230V+senzorEVE/ETIRELControl equipmentRelaysRelaysTwilight switchTwilight switchInternationalAutomation, signaling and control devicesTwillight and staircase switches ETIRELLuminous flux: 1 lx-50000 lxType of contacts: 1xCONo. of NC contacts: 0Voltage type: ACNumber of contacts: 1No. of CO contacts: 1Function: Monitoring and Control relaysMaximum load capacity at AC1: 4000 VANo. of NO contacts: 0Supply Voltage: 230 V-230 VRated current: 16 A/16 ACategory: Twillight and staircase switchesTwilight switch TOWAR Function: Monitoring and Control relays Supply Voltage: 230 V-230 V Luminous flux: 1 lx-50000 lx Number of contacts: 1 Rated current: 16 A/16 A Maximum load capacity at AC1: 4000 VA Voltage type: AC Category: Twillight and staircase switches Type of contacts: 1xCO No. of NC contacts: 0 No. of CO contacts: 1 No. of NO contacts: 0
