002470095

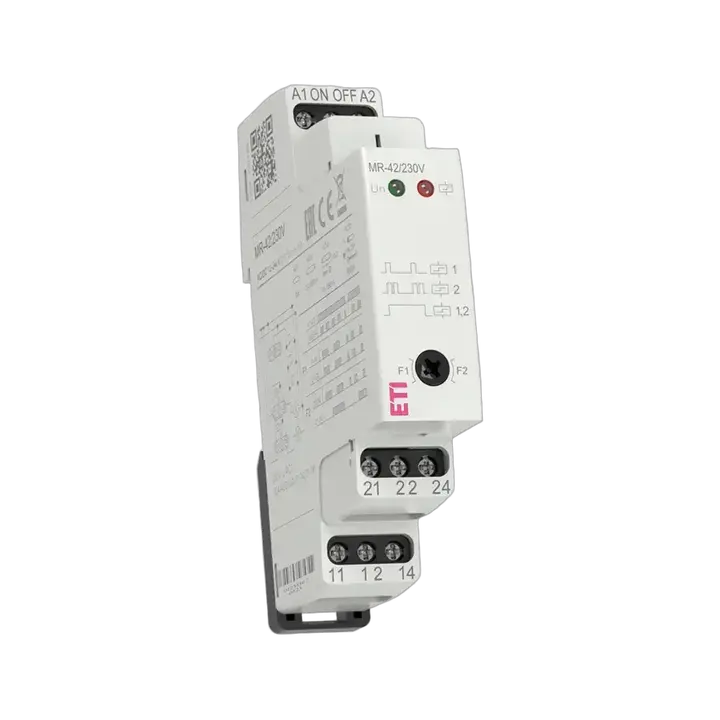

MR-42 230V Memory relay
- ETI Code:
- 002470095
- Power dissipation:
- 1.2 W
- Number of poles:
- 1
- Catalogue Group:
- Time relay (Analog)
- Catalogue Subgroup:
- Memory relay
- Rated Frequency:
- 50/60 Hz
- Pollution Degree:
- 2
- Overvoltage Category:
- III
- Standards:
- EN 60669-2-2, EN 61010-1
- Application:
- EN 60669-2-2, EN 61010-1
- Type of Installation:
- TH 35
- IP rating:
- IP40
- Rated cross section:
- 2.5 mm²
- Max. inrush current:
- 30 A
- Number of modules:
- 1
- Switching voltage:
- 250 V
- Electrical cycles:
- 70,000
- Storage Temperature:
- -30-70 °C
- Working Temperature:
- -20-55 °C
- Type description:
- Memory and latching relays MR-41, MR-42
- Function:
- Memory relay
- Supply Voltage:
- 230 V
- Rated current:
- 2/16 A
- Voltage type:
- AC
- Category:
- Memory and latching relays MR-41, MR-42
- No. of CO contacts:
- 2
21 Logistics
Product
- Net weight of the product
- 0.085 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.09 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895472834
- Basic packaging weight
- 0.085 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 97 mm
- Basic packaging volume
- 0.235 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895472841
- Transport packaging weight
- 0.85 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 4,600 pcs
- Customs tariff
- 85364900
4 ETIM
- Nominal current
- 32 A
- Voltage type (operating voltage)
- AC
- Degree of protection (IP)
- IP40
- Voltage type for actuating
- AC
ETIM Classification – Version 9.0
