002470040

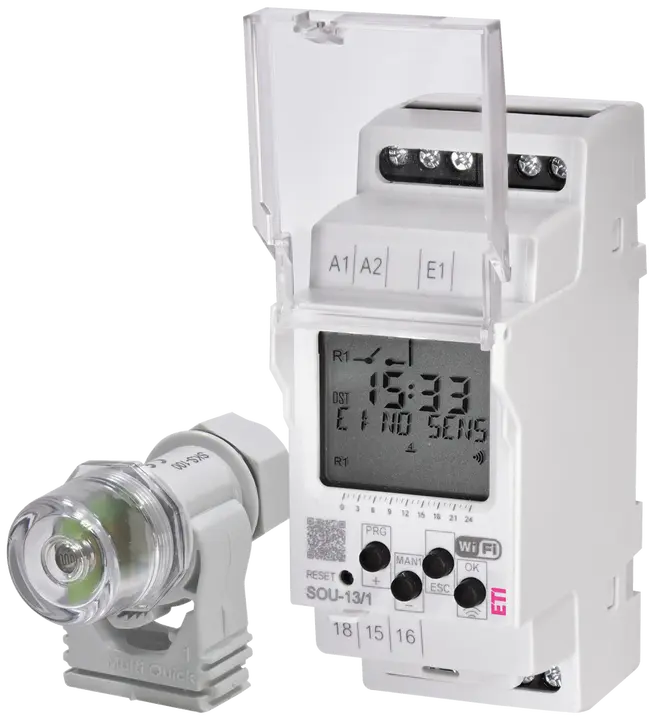

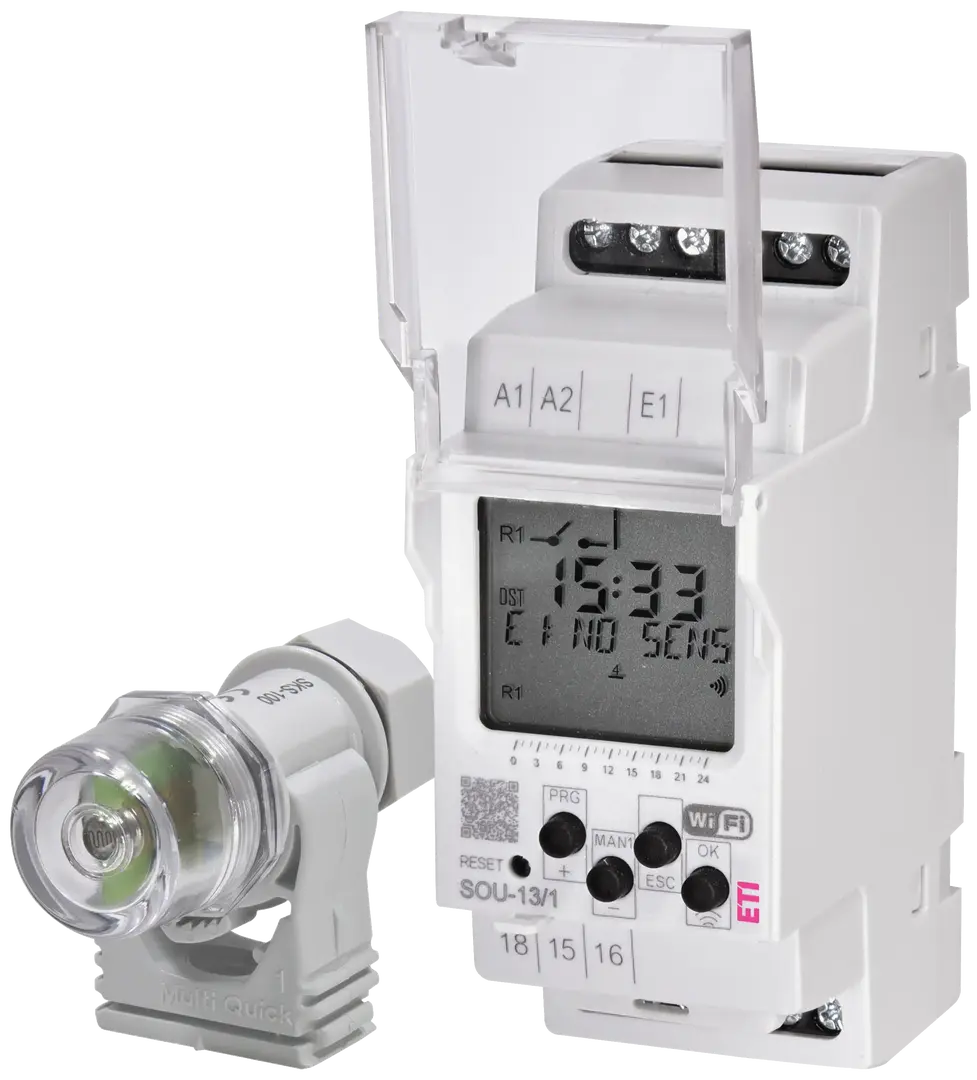

SOU-13/1+sens.SKS-200 Twilight switch
- ETI Code:
- 002470040
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 100-240 V
- Luminous flux:
- 1-50000 lx
- Number of contacts:
- 1
- Rated current:
- 8 A
- Maximum load capacity at AC1:
- 2,500 VA
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
- Type of contacts:
- 1xCO
- No. of CO contacts:
- 1
3 Documents
11 Logistics
Product
- Net weight of the product
- 0.172 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400174697
- Transport packaging weight
- 0.172 kg
- Transport Packaging Dimensions Height
- 78 mm
- Transport Packaging Dimensions Width
- 97 mm
- Transport Packaging Dimensions Depth
- 61 mm
- Transport packaging volume
- 0.462 dm³
- Pallet quantity
- 1,920 pcs
- Customs tariff
- 85364900
3 ETIM
- Rated voltage
- 230 V
- Rated frequency(Min)
- 50 Hz
- Rated frequency(Max)
- 60 Hz
ETIM Classification – Version 9.0
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
25 Tags
002470040Twilight switchSOU-13/1+sens.SKS-200EVE/ETIRELControl equipmentRelaysRelaysRelaysRelaysInternationalAutomation, signaling and control devicesTwillight and staircase switches ETIRELLuminous flux: 1 lx-50000 lxType of contacts: 1xCONo. of NC contacts: 0Voltage type: ACNumber of contacts: 1No. of CO contacts: 1Function: Monitoring and Control relaysMaximum load capacity at AC1: 2500 VANo. of NO contacts: 0Supply Voltage: 100 V-240 VRated current: 8 A/8 ACategory: Twillight and staircase switchesTwilight switch TOWAR Function: Monitoring and Control relays Supply Voltage: 100 V-240 V Luminous flux: 1 lx-50000 lx Number of contacts: 1 Rated current: 8 A/8 A Maximum load capacity at AC1: 2500 VA Voltage type: AC Category: Twillight and staircase switches Type of contacts: 1xCO No. of NC contacts: 0 No. of CO contacts: 1 No. of NO contacts: 0
