004641543

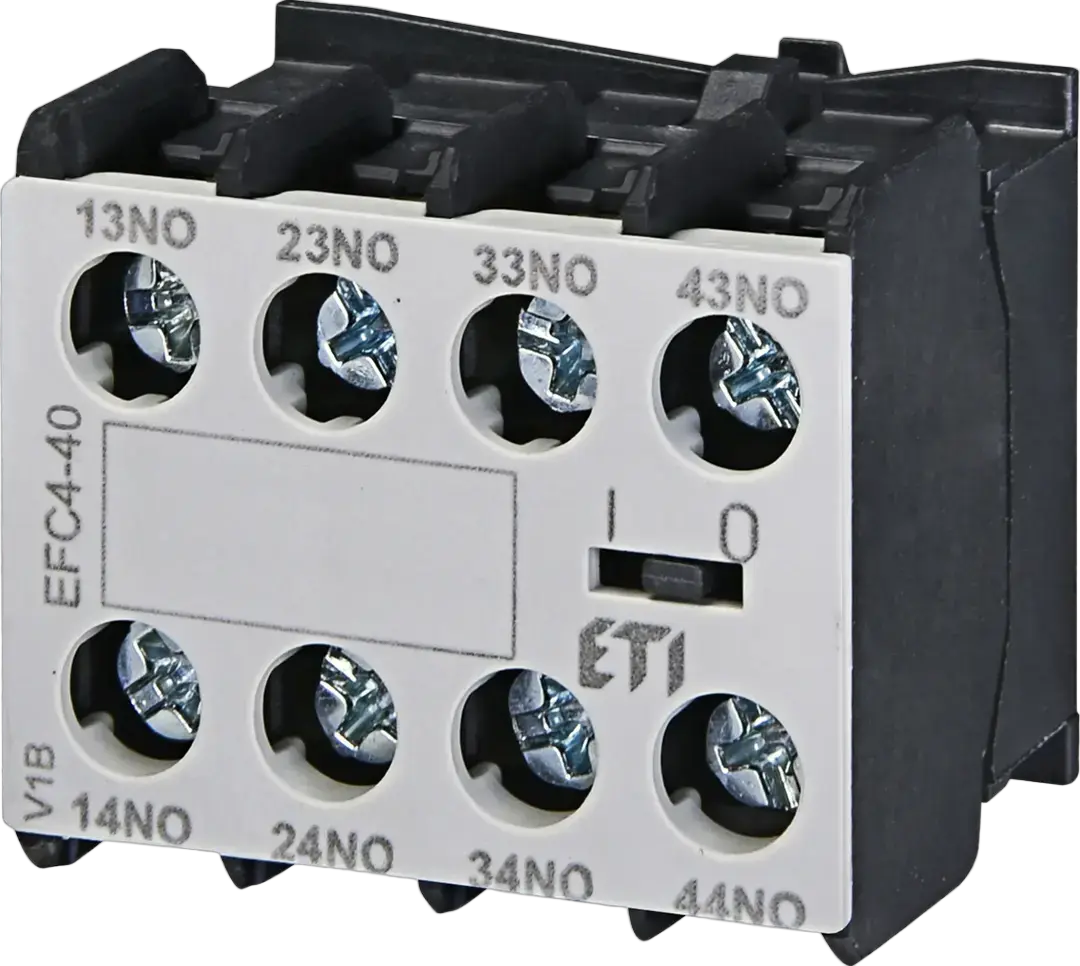

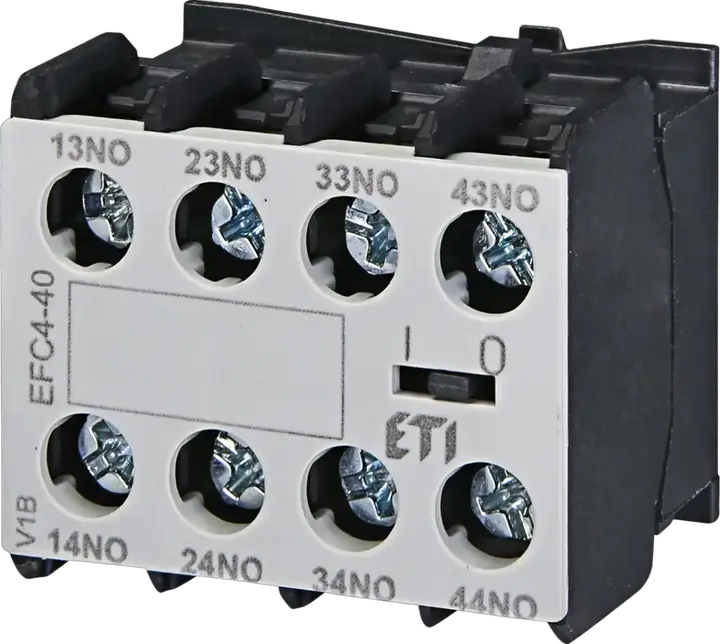

EFC4-40 Aux.contacts
- ETI Code:
- 004641543
- To use with:
- miniature and auxiliary contator CEC0 4 pole
- No. of NO contacts:
- 4
- Function accessories:
- Auxiliary contact blocks
- Function:
- Auxiliary contact blocks
- Type of Installation:
- Contactor mounting
- Catalogue Group:
- Accessories CEC
6 Documents
14 Logistics
Product
- Net weight of the product
- 0.028 kg
- Net width
- 36.6 mm
- Net height
- 32 mm
- Net depth
- 32.14 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355553428
- Transport packaging weight
- 0.044 kg
- Transport Packaging Dimensions Height
- 37 mm
- Transport Packaging Dimensions Width
- 36 mm
- Transport Packaging Dimensions Depth
- 42 mm
- Transport packaging volume
- 0.056 dm³
- Pallet quantity
- 19,417 pcs
- Customs tariff
- 85365080
4 ETIM
- Number of contacts as normally closed contact
- 4
- Mounting method
- Front fastening
- Rated operation current Ie at AC-15, 230 V
- 10 A
- Type of electric connection
- Screw connection
ETIM Classification – Version 9.0
