001100230

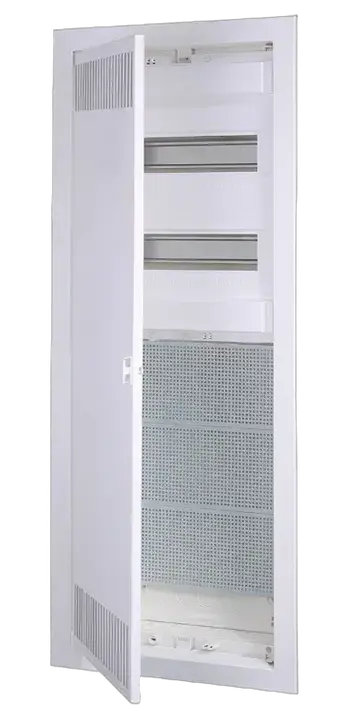

ECG70HCOMBO3/2-I Distribution box
- ETI Code:
- 001100230
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Rows (legacy):
- 5
- Catalogue Group:
- ECG flush mounted Multimedia distribution boxes IP30
- Type of door:
- Perforated metal door, White
- Type of Installation:
- Flush-mounted/hollow wall
- Rated current:
- 63 A
- Protection Class:
- II
- IP rating:
- IP30
- No. of modules (total/per row):
- 28/14
- Frame size (Nr. of rows):
- 5
- Door (material, color):
- metal-perforated, white
- Enclosure base (material, color):
- plastic, white
- Number of PE/N terminals (connections):
- 13
- Glow wire test (°C):
- 850 °C
14 Logistics
Product
- Net weight of the product
- 4.9 kg
- Net width
- 425 mm
- Net height
- 841.7 mm
- Net depth
- 94.31 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895838685
- Transport packaging weight
- 4.9 kg
- Transport Packaging Dimensions Height
- 850 mm
- Transport Packaging Dimensions Width
- 354 mm
- Transport Packaging Dimensions Depth
- 133 mm
- Transport packaging volume
- 40.02 dm³
- Pallet quantity
- 34 pcs
- Customs tariff
- 85381000
1 ETIM
- Width in number of modular spacings
- 12
ETIM Classification – Version 9.0
