003810252

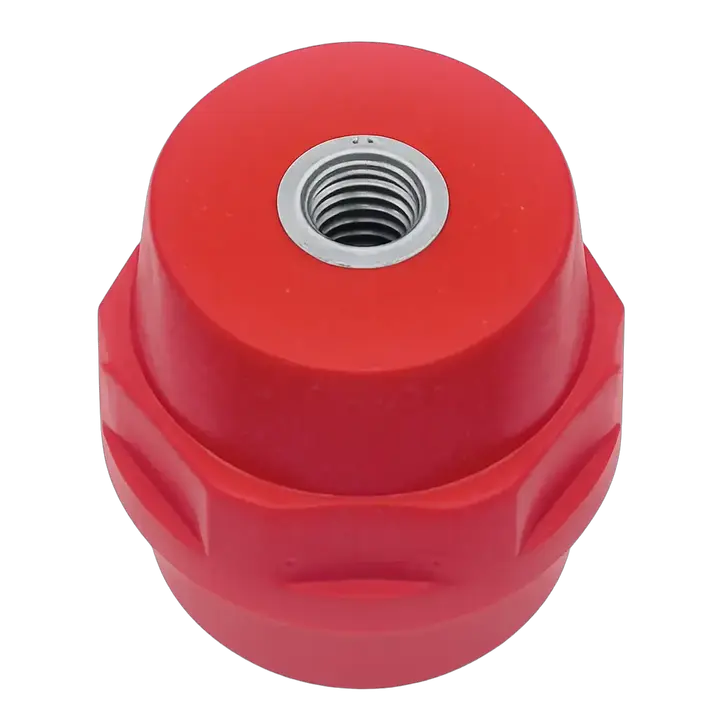

INS 751665 Busbar insulator
- ETI Code:
- 003810252
- Rated DC voltage:
- 2000 V
- Rated AC voltage:
- 2000 V
- Impulse isolation strenght:
- 50 kV
- Working Temperature:
- -20-120 °C
- Material:
- Polyester BMC
- Flammable class:
- V0
- Height:
- 75 mm
- Width:
- 65 mm
12 Logistics
Product
- Net weight of the product
- 0.112 kg
- Stock unit of measure
- pcs
Basic Packaging
- EAN code for a basic packaging
- 3838895495864
- Basic packaging weight
- 0.12 kg
- Basic packaging volume
- 0.08 dm³
- Basic packaging quantity
- 1 pcs
Transport Packaging
- Transport packaging weight
- 0.56 kg
- Transport packaging volume
- 0.4 dm³
- Transport packaging quantity
- 5 pcs
- Customs tariff
- 85469010
- EAN code for a transport packaging
- 3838895495871
- Pallet quantity
- 5 pcs
