001102615

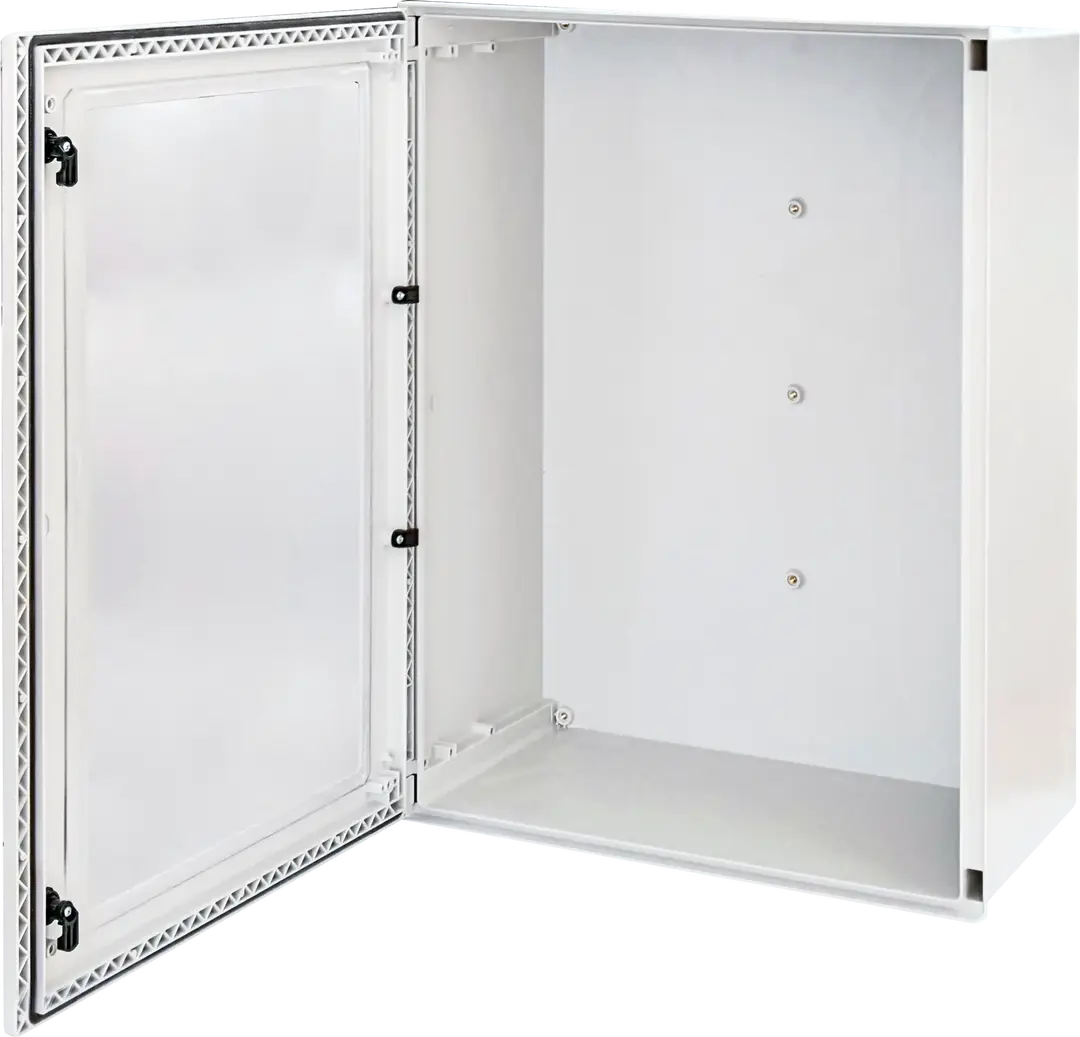

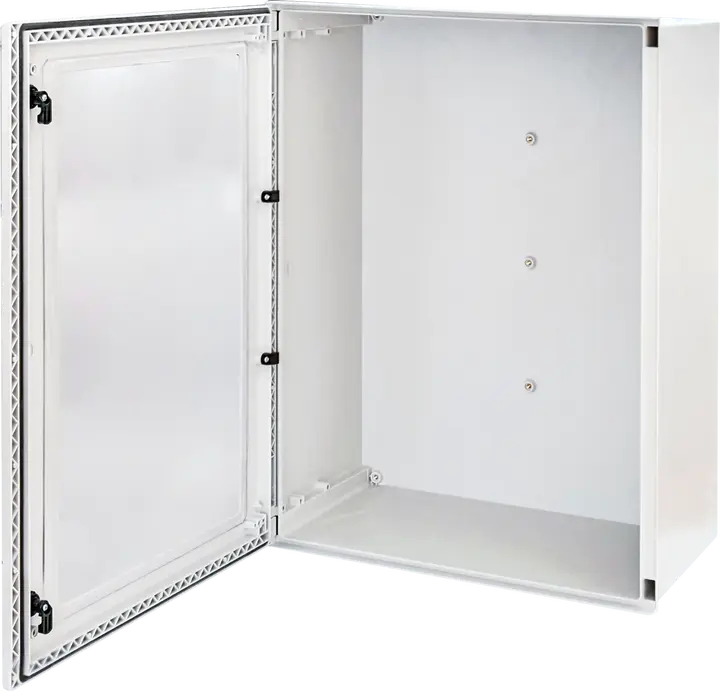

EPC-W 80-60-30 Enclosure
- ETI Code:
- 001102615
- Catalogue Group:
- EPC Double insulation enclosures IP66
- Protection Class:
- II
- Rated current:
- 630 A
- Rated AC voltage:
- 1000 V
- Rated DC voltage:
- 1500 V
- IP rating:
- IP66
- With mounting plate:
- No
- Material:
- Polyester reinforced with fiber glass
- Mechanical resistance:
- IK10
- Height:
- 800 mm
- Width:
- 600 mm
- Depth:
- 300 mm
- Type of door:
- Transparent
- Color:
- RAL 7035
5 Documents
14 Logistics
Product
- Net weight of the product
- 12.15 kg
- Net width
- 600 mm
- Net height
- 800 mm
- Net depth
- 307 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895831976
- Transport packaging weight
- 12.15 kg
- Transport Packaging Dimensions Height
- 800 mm
- Transport Packaging Dimensions Width
- 600 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 144 dm³
- Pallet quantity
- 6 pcs
- Customs tariff
- 85381000
10 ETIM
- Nominal current (In)
- 630 A
- Width
- 600 mm
- Degree of protection (IP)
- IP66
- Housing material
- Plastic
- Depth
- 300 mm
- Extension possible
- Yes
- Colour
- Other
- Type of door
- Single
- Height
- 800 mm
- RAL-number
- 7,035
ETIM Classification – Version 9.0
