001344012

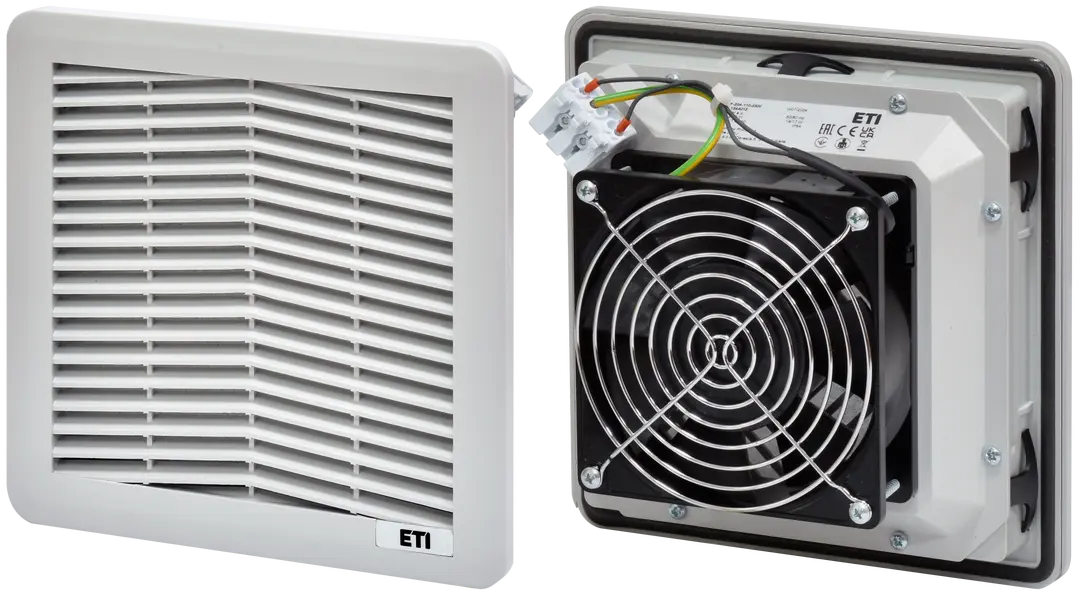

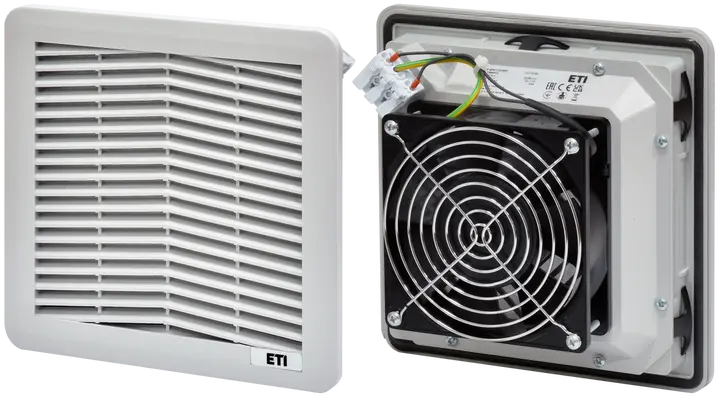

EF-204-110-230V Filterfan
- ETI Code:
- 001344012
- Rated current:
- 0.126 A
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Height:
- 204 mm
- Width:
- 204 mm
- Depth:
- 95.5 mm
- Color:
- RAL 7035
- IP rating:
- IP54
- Connection type:
- Terminal block
- Rated power:
- 0.019 kW
- Storage temperature:
- -40-70 °C
- Approvals:
- CE
- Max. static pressure:
- 80 Pa
- Fan noise:
- 40 dB
- Filter class:
- G3
- Mounting wall thickness:
- 1.3-3.2 mm
- Working temperature:
- -10-55 °C
- Max. airflow:
- 110 m³/h
- Airflow with exhaust filter:
- 84 m³/h
- Mounting cut-out:
- 177 mm
21 Logistics
Product
- Net weight of the product
- 1.15 kg
- Net width
- 204.1 mm
- Net height
- 204.1 mm
- Net depth
- 95.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400103628
- Basic packaging weight
- 1.15 kg
- Basic Packaging Dimensions Height
- 100 mm
- Basic Packaging Dimensions Width
- 210 mm
- Basic Packaging Dimensions Depth
- 210 mm
- Basic packaging volume
- 4.41 dm³
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 3838400103635
- Transport packaging weight
- 1.208 kg
- Transport Packaging Dimensions Height
- 730 mm
- Transport Packaging Dimensions Width
- 470 mm
- Transport Packaging Dimensions Depth
- 560 mm
- Transport packaging volume
- 192.136 dm³
- Pallet quantity
- 100 pcs
- Customs tariff
- 84213925
