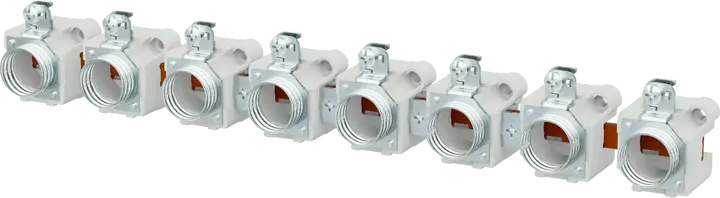

SET EZR 25/GEG 25 8p Tariff fuse link base
- ETI Code:
- 002322106
- To use with:
- D fuse-links
- Rated DC voltage:
- 500 V
- Product group:
- LV-fuse base
- Catalogue Group:
- LV-fuse base
- Standards:
- IEC60269
- Application:
- Residential and industrial installation
- Type description:
- EZR/8
- Size:
- DII
- Number of poles:
- 8
- Rated current:
- 25 A
- Rated AC voltage:
- 500 V
- Type of Installation:
- Busbar mounting
15 Logistics
Product
- EAN code for a single product
- 3838400074171
- Net weight of the product
- 0.82 kg
- Net width
- 391.8 mm
- Net height
- 47.4 mm
- Net depth
- 55.3 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 15 pcs
- EAN code for a transport packaging
- 3838895565758
- Transport packaging weight
- 12.66 kg
- Transport Packaging Dimensions Height
- 155 mm
- Transport Packaging Dimensions Width
- 505 mm
- Transport Packaging Dimensions Depth
- 235 mm
- Transport packaging volume
- 18.395 dm³
- Pallet quantity
- 450 pcs
- Customs tariff
- 85389099
6 ETIM
- Model
- Fitted screw
- Construction size
- DII
- Number of poles
- 8
- Rated voltage
- 500 V
- Rated current
- 25 A
- Material
- Porcelain
