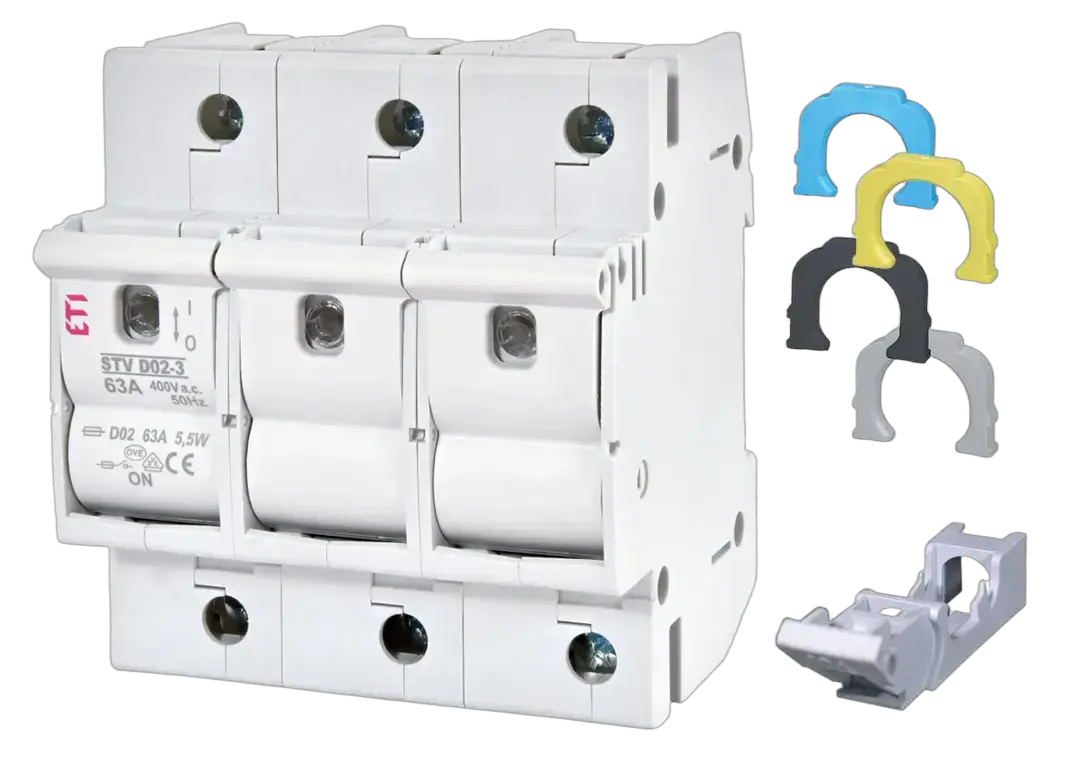

STV D02 3p 63A/400V komplet Switch disconnector fuse

ETI Code:: 002271104
To use with:: D0 fuse-links
Breaking capacity AC:: 50 kA
Catalogue Group:: LV-fuse disconnector SET (including proper fuse, gauge piece and adaptor)
Ambient temperature:: -5/40 °C
Standards:: IEC60269-1, IEC60269-3, IEC60947-1, IEC60947-3
Application:: Residential and industrial installation
Type description:: STV D02 SET
Type of Installation:: DIN rail
Utilization category:: AC-22A
Size:: D02
Product group:: LV-fuse disconnector
Rated AC voltage:: 230/400 V
Rated DC voltage:: 110 V
Rated current:: 63 A
Number of poles:: 3

Accessories

Product

EAN code for a single product: 3838400030689
Net weight of the product: 0.439 kg
Net width: 80.4 mm
Net height: 89.2 mm
Net depth: 69.22 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 4 pcs
EAN code for a basic packaging: 3838895581017
Basic packaging weight: 1.822 kg
Basic Packaging Dimensions Height: 0.083 m
Basic Packaging Dimensions Width: 0.097 m
Basic Packaging Dimensions Depth: 0.327 m
Basic packaging volume: 0.003 m³

Transport Packaging

Transport packaging quantity: 32 pcs
EAN code for a transport packaging: 3838895581024
Transport packaging weight: 15.125 kg
Transport Packaging Dimensions Height: 0.215 m
Transport Packaging Dimensions Width: 0.368 m
Transport Packaging Dimensions Depth: 0.368 m
Transport packaging volume: 0.029 m³
Pallet quantity: 768 pcs
Customs tariff: 85389099

Construction size: D02
Number of poles: 3
Rated voltage: 400 V
Rated current: 63 A

ETIM Classification – Version 9.0
