002921074

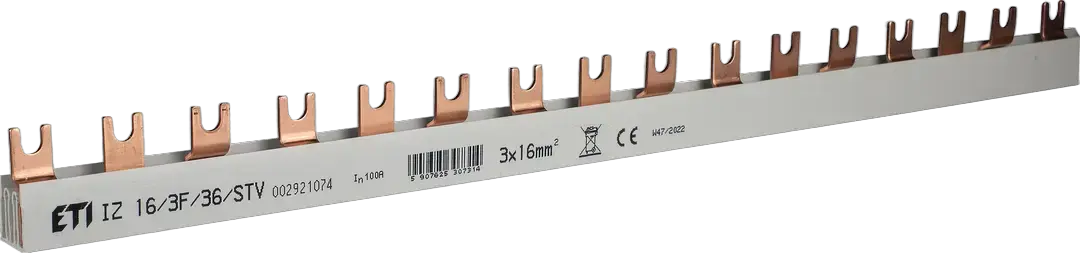

IZ16/3F/36/STV Insulated busbar
- ETI Code:
- 002921074
- Catalogue Group:
- IZ Section rails
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10, STVD02
- Type description:
- Fork Type
- Number of poles:
- 3
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 100 A
- Rated cross section:
- 16 mm²
- Lenght in modules:
- 1x36
- No. Of Phases:
- 3
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
15 Logistics
Product
- Net depth
- 16.5 mm
- Net weight of the product
- 0.27 kg
- Net width
- 968.2 mm
- Net height
- 31.6 mm
- Stock unit of measure
- pcs
Basic Packaging
- EAN code for a basic packaging
- 5907625307314
- Basic packaging weight
- 0.7 kg
- Basic packaging volume
- 0.6 dm³
- Basic packaging quantity
- 1 pcs
Transport Packaging
- Transport packaging weight
- 14.3 kg
- Transport packaging volume
- 12.2 dm³
- Transport packaging quantity
- 20 pcs
- Customs tariff
- 85389099
- EAN code for a transport packaging
- 5907625307444
- Pallet quantity
- 1,120 pcs
8 ETIM
- Cross section
- 16 mm²
- Number of phases
- 3
- Rated permanent current Iu
- 100 A
- Module width
- 27 mm
- Length
- 1,000 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
ETIM Classification – Version 9.0
