002921091

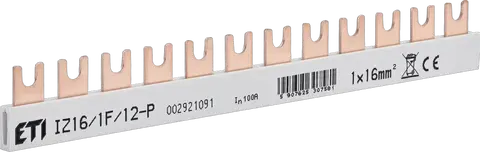

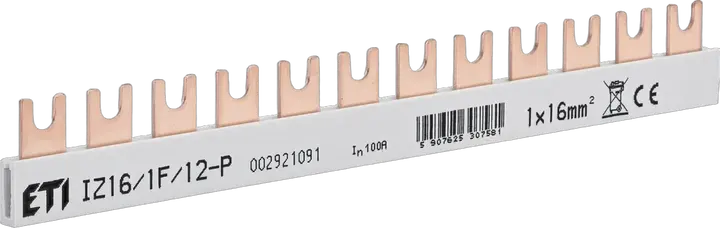

IZ16/1F/12P Insulated busbar
- ETI Code:
- 002921091
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 100 A
- Rated cross section:
- 16 mm²
- Lenght in modules:
- 1x12
- No. Of Phases:
- 1
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
15 Logistics
Product
- Net weight of the product
- 70 g
- Net width
- 215 mm
- Net height
- 26.8 mm
- Net depth
- 5.7 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5907625307581
- Basic packaging weight
- 0.07 kg
- Basic packaging volume
- 0.045 dm³
Transport Packaging
- Transport packaging quantity
- 360 pcs
- EAN code for a transport packaging
- 5907625307574
- Transport packaging weight
- 2.8 kg
- Transport packaging volume
- 1.8 dm³
- Pallet quantity
- 102,960 pcs
- Customs tariff
- 85389099
8 ETIM
- Cross section
- 16 mm²
- Number of phases
- 1
- Rated permanent current Iu
- 100 A
- Module width
- 17.8 mm
- Length
- 210 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
ETIM Classification – Version 9.0
