002921072

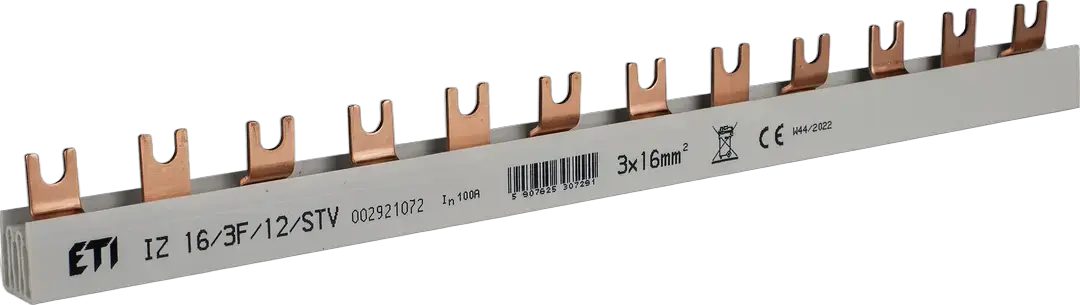

IZ16/3F/12/STV Insulated busbar
- ETI Code:
- 002921072
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10, STVD02
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Number of poles:
- 3
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 100 A
- Rated cross section:
- 16 mm²
- Lenght in modules:
- 1x12
- No. Of Phases:
- 3
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
16 Logistics
Product
- EAN code for a single product
- 5907625307291
- Net weight of the product
- 0.27 kg
- Net width
- 320 mm
- Net height
- 31.6 mm
- Net depth
- 16.5 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 20 pcs
- EAN code for a basic packaging
- 5907625307420
- Basic packaging weight
- 4.6 kg
- Basic packaging volume
- 4 dm³
Transport Packaging
- Transport packaging quantity
- 120 pcs
- EAN code for a transport packaging
- 5907625307512
- Transport packaging weight
- 28.5 kg
- Transport packaging volume
- 25 dm³
- Pallet quantity
- 3,360 pcs
- Customs tariff
- 85389099
8 ETIM
- Cross section
- 16 mm²
- Number of phases
- 3
- Rated permanent current Iu
- 100 A
- Module width
- 27 mm
- Length
- 210 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
ETIM Classification – Version 9.0
