004132035

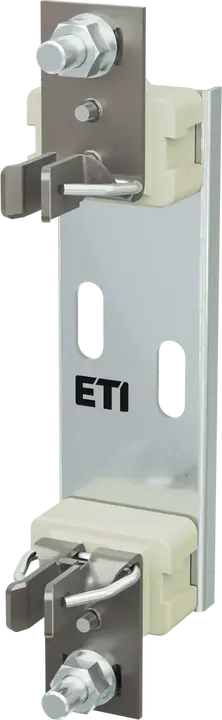

PK1L M10-M10 1p 1500V Fuse - base

ETI Code:: 004132035
Type description:: PK
Size:: NH1L
Number of poles:: 1
Rated current:: 250 A
Rated DC voltage:: 1500 V
Type of Installation:: Base plate mounting
Standards:: IEC 60269
Ambient temperature:: -25/55 °C
Max Permissable Power Dissipation per Fuse Link:: 32 W

Accessories

Product

EAN code for a single product: 3838400179241
Net weight of the product: 0.67 kg
Net width: 55 mm
Net height: 240 mm
Net depth: 84 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895846802
Basic packaging weight: 2.11 kg
Basic Packaging Dimensions Height: 0.115 m
Basic Packaging Dimensions Width: 0.169 m
Basic Packaging Dimensions Depth: 0.285 m
Basic packaging volume: 0.006 m³

Transport Packaging

Transport packaging quantity: 15 pcs
EAN code for a transport packaging: 3838895846819
Transport packaging weight: 11.005 kg
Transport Packaging Dimensions Height: 0.285 m
Transport Packaging Dimensions Width: 0.343 m
Transport Packaging Dimensions Depth: 0.363 m
Transport packaging volume: 0.035 m³
Pallet quantity: 270 pcs
Customs tariff: 85389099

Mounting method: Screw-on
Construction size: Other
Number of poles: 1
Connection type: Screwed terminal
Rated current: 250 A

ETIM Classification – Version 9.0
